Horaizon Orthopedic Implants
Horaizon Orthopedic Implants

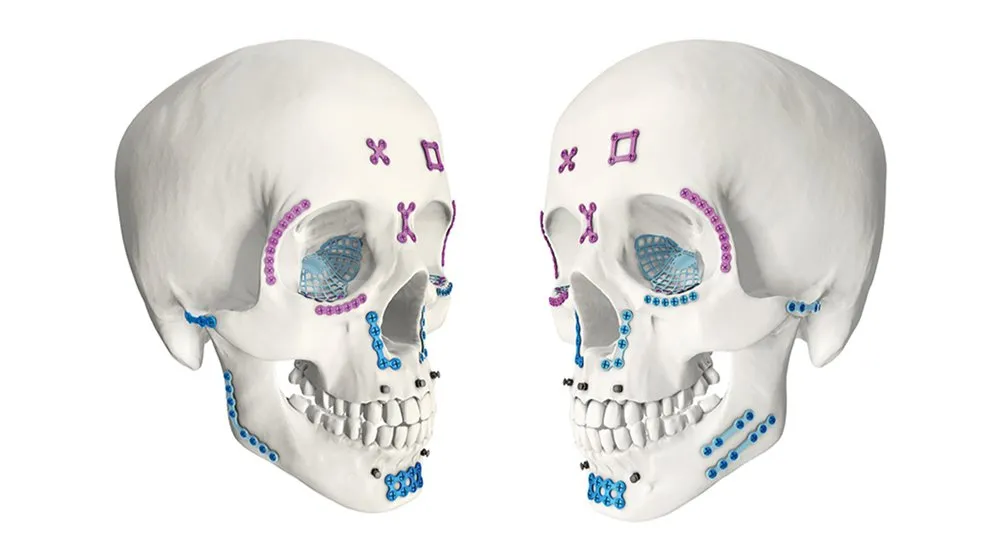

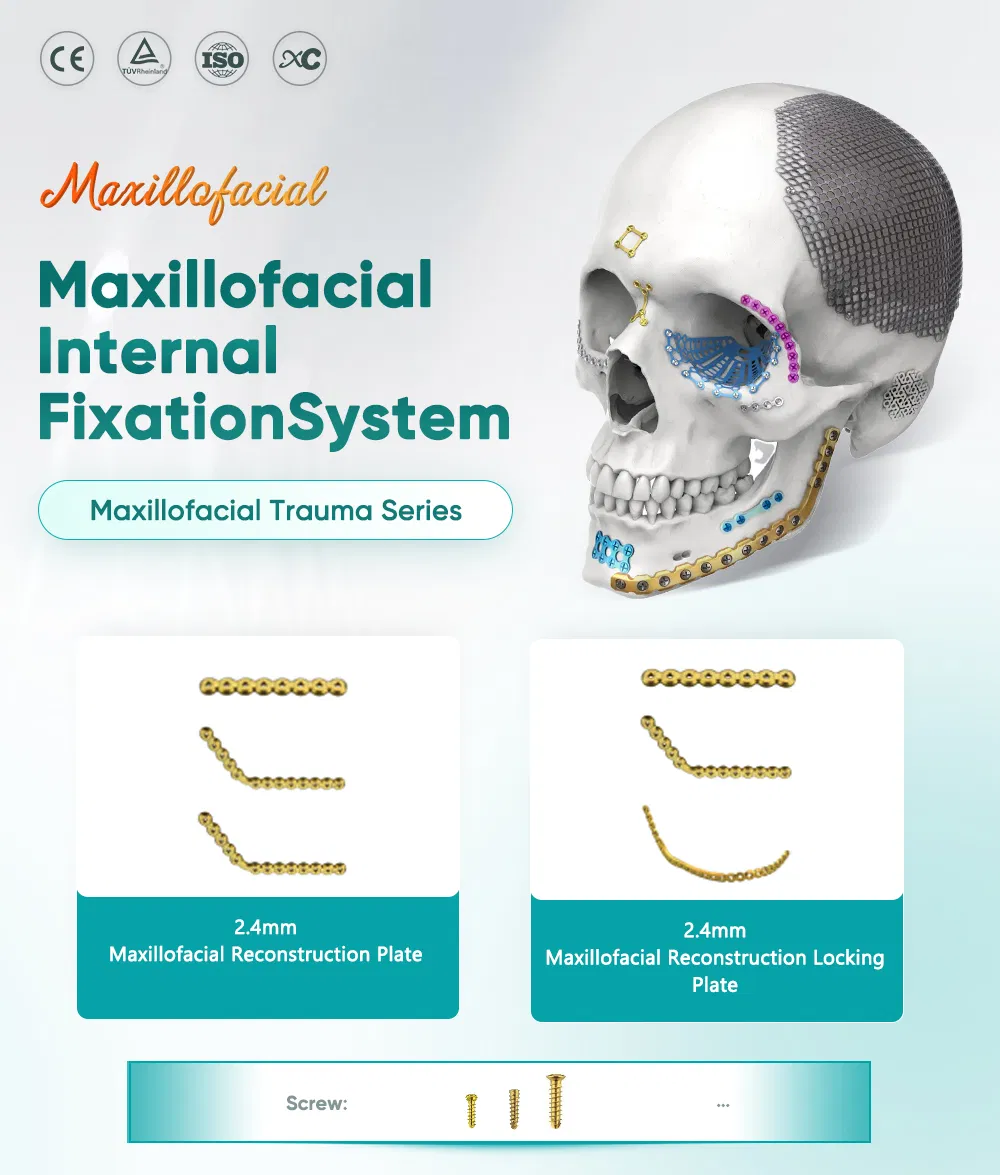

Comprehensive Solutions for Mandible Reconstruction Surgery

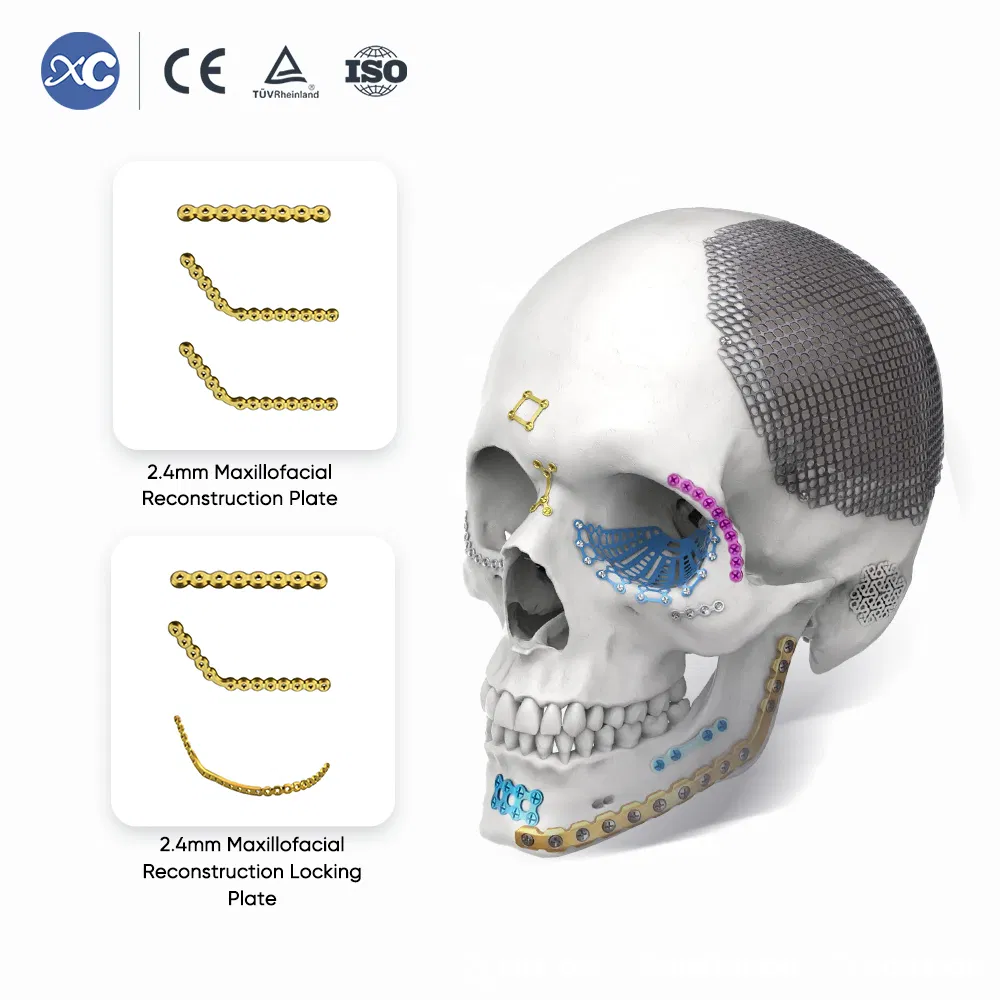

| 2.4mm Maxillofacial Reconstruction Plate Specifications | ||
|---|---|---|

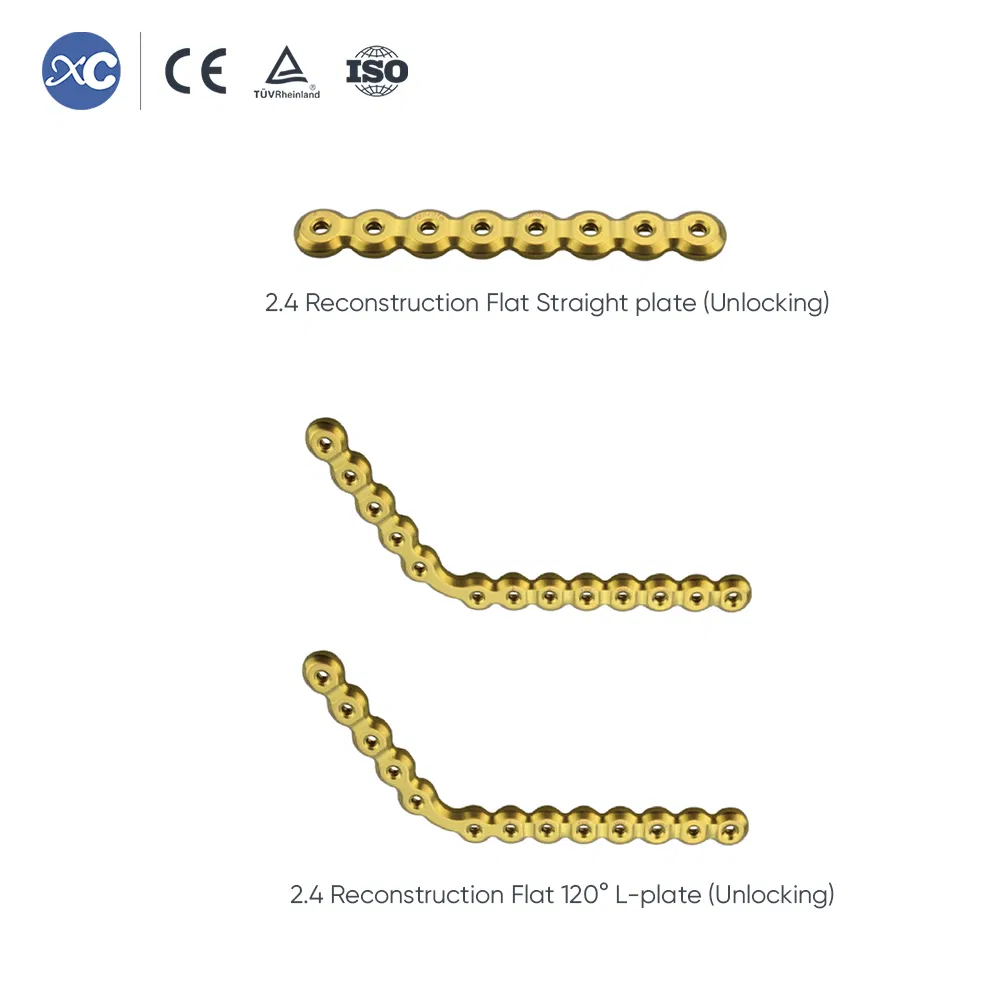

| 2.4 Reconstruction Flat Straight plate (Unlocking) | RP4H8CZ | 8 holes, 2.4mm, 68mm |
| RP4H10CZ | 10 holes, 2.4mm, 85mm | |
| RP4H12CZ | 12 holes, 2.4mm, 102mm | |
| RP4H14CZ | 14 holes, 2.4mm, 119mm | |
| RP4H16CZ | 16 holes, 2.4mm, 136mm | |
| RP4H18CZ | 18 holes, 2.4mm, 153mm | |
| RP4H20CZ | 20 holes, 2.4mm, 170mm | |
| 2.4 Reconstruction Flat 120°L-plate (Unlocking) | RP4H13CXLL/R | 13 holes, 2.4mm, 97mm (Left/Right) |
| RP4H15CXLL/R | 15 holes, 2.4mm, 114mm (Left/Right) | |
| RP4H19CXLL/R | 19 holes, 2.4mm, 148mm (Left/Right) | |
| RP4H23CXLL/R | 23 holes, 2.4mm, 182mm (Left/Right) | |
| 2.4mm Maxillofacial Reconstruction Locking Plate | ||
|---|---|---|
| Locking Reconstruction Straight Plate | RP4HS8CZ | 8 holes, 2.4mm, 69mm |
| RP4HS14CZ | 14 holes, 2.4mm, 120mm | |
| RP4HS20CZ | 20 holes, 2.4mm, 171mm | |
| Locking Anatomical Plate | RP4HSJXL/R | Small, Medium, Large (Left/Right) |

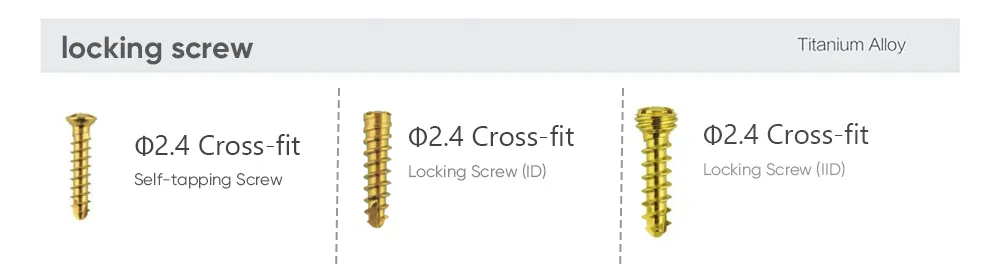

| Self-tapping Screws | RSH246-24ZG | Φ2.4, Length 6mm to 24mm |

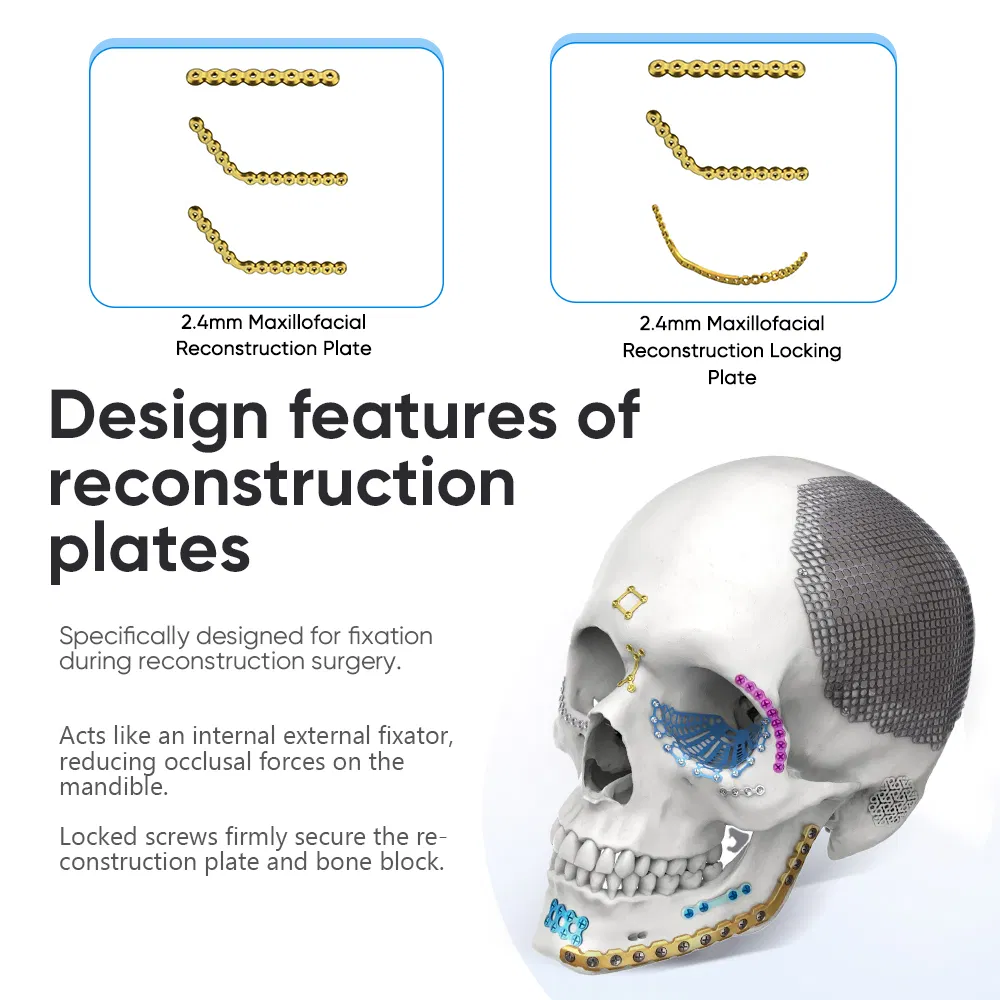

Specifically designed for fixation during reconstruction surgery. Improves stress concentration in special areas and enhances fatigue resistance.

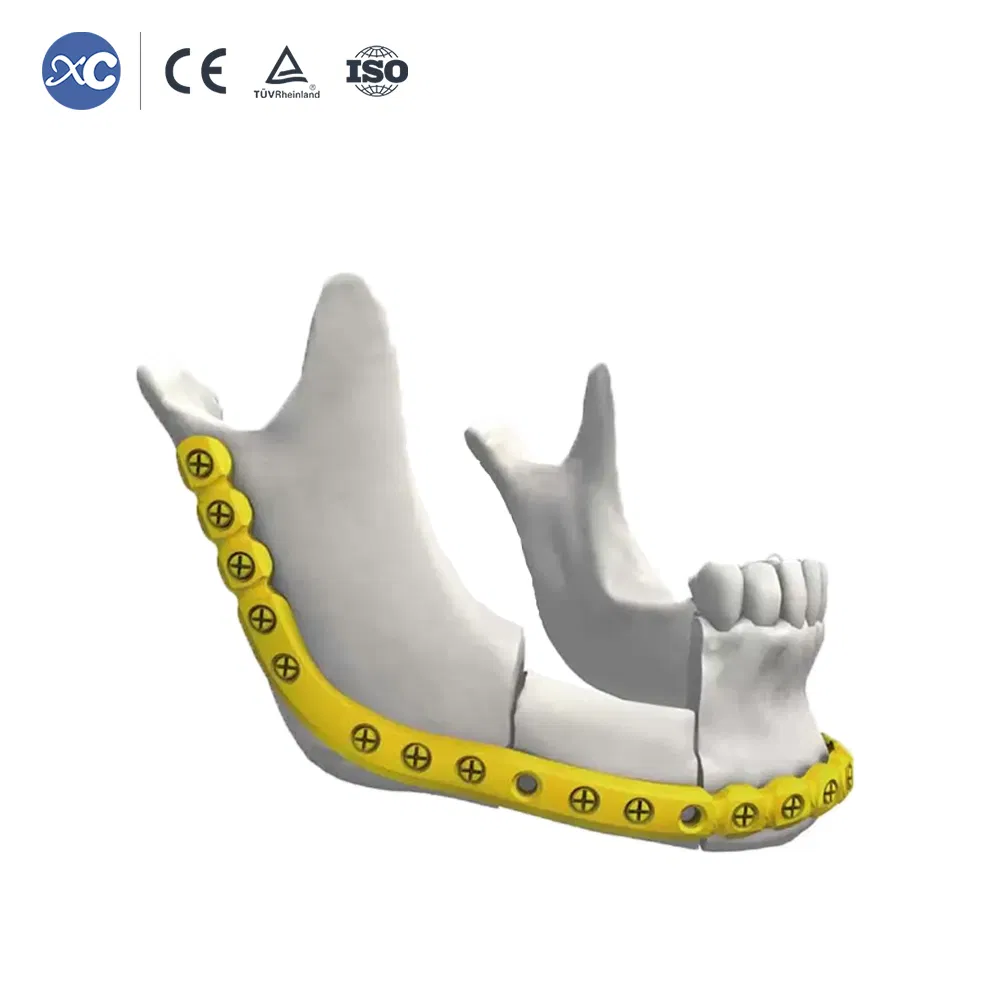

Acts like an internal external fixator, reducing occlusal forces on the mandible. Provides ideal fixation, even for less dense mandible bone.
Locked screws firmly secure the reconstruction plate and bone block. Non-locked screws allow for angled and compressive fixation, offering flexibility during surgery.

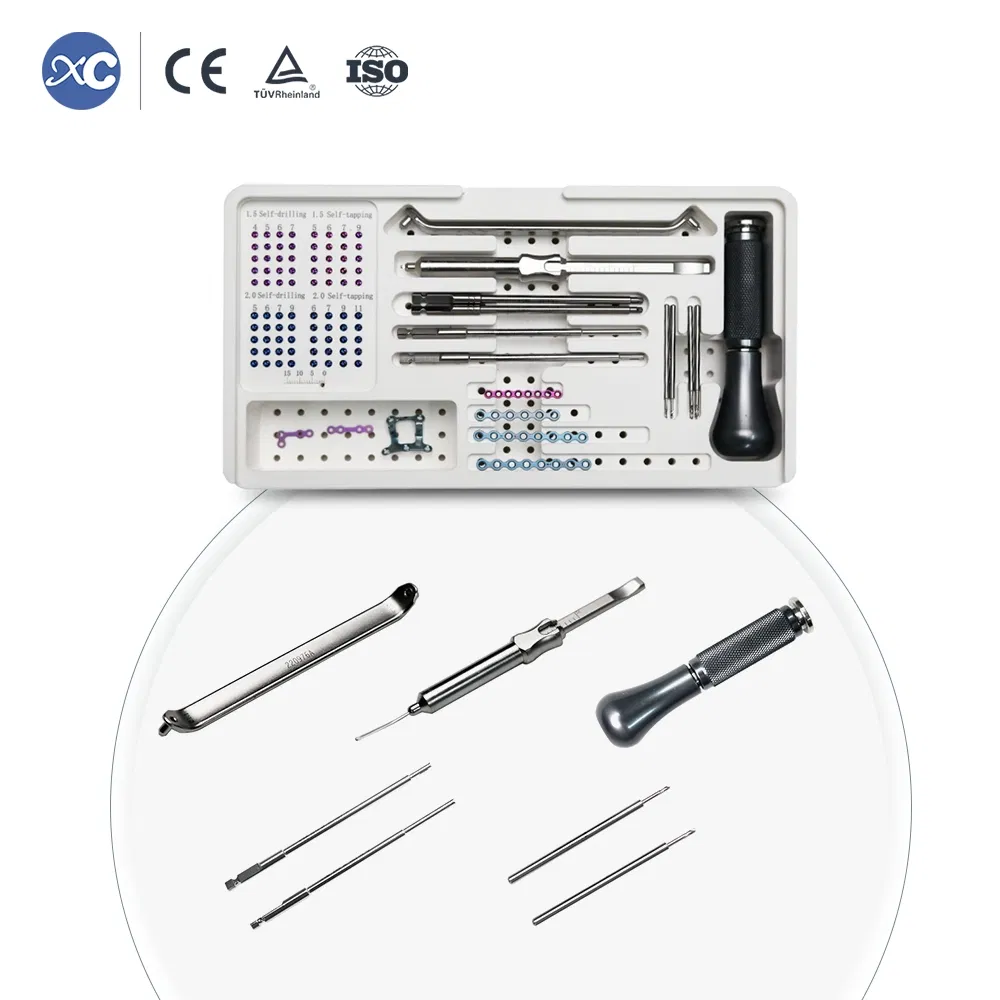

Compatible Instrument Set:
1.5/2.0mm Maxillofacial Plate Instrument Set

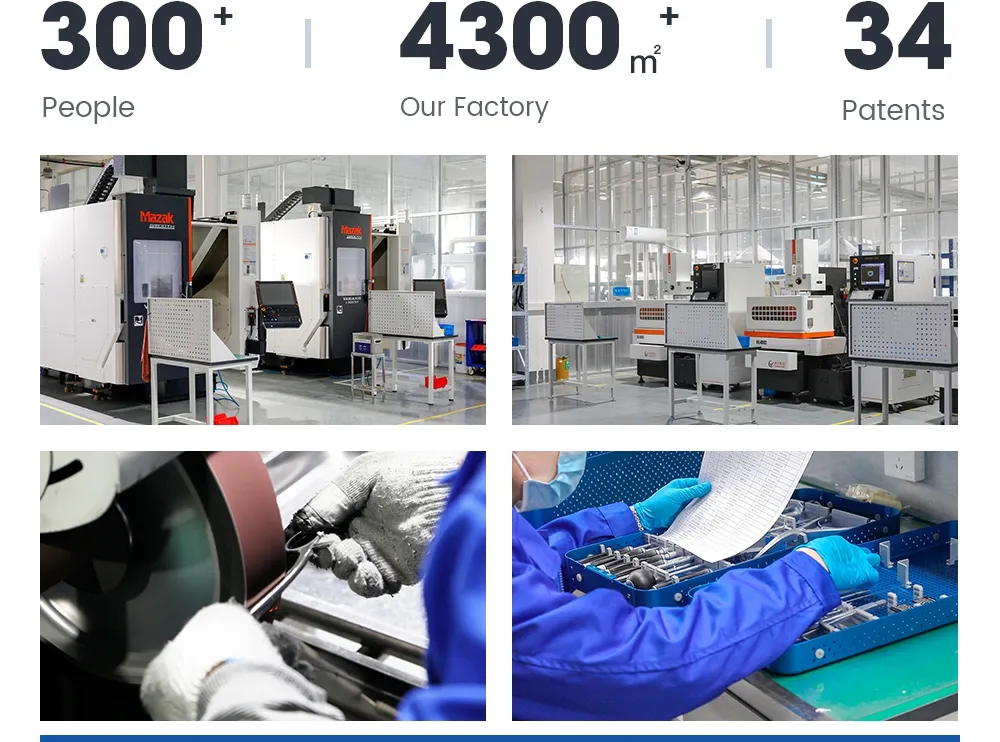

Our team specializes in helping you choose a full range of orthopedic implants and instruments. As a professional manufacturer and trader, we operate dedicated production lines and warehouses to ensure quality and availability.
With 15 years of research and development, our portfolio covers six main orthopedic series, including spinal systems, interlocking nail systems, locking plate systems, basic instrument systems, and medical power tools. We also provide specialized veterinary orthopedic solutions.
