Home > Linear External Fixators > Titanium Bone Fixator Kit in Sleek White and Black

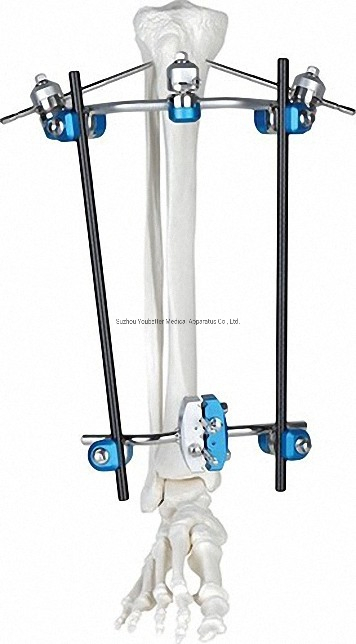

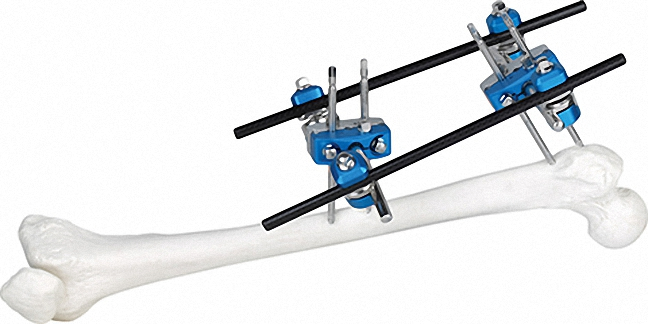

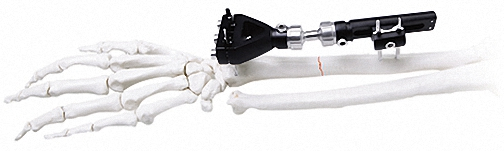

Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
1 / 5
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black

Titanium Bone Fixator Kit in Sleek White and Black

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Specifications

Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
HS Code
90211000
Capacity
500,000 Pieces/Year

External Fixator - Modular Fixation Systems

The Pinnacle of Modular Fixation Systems

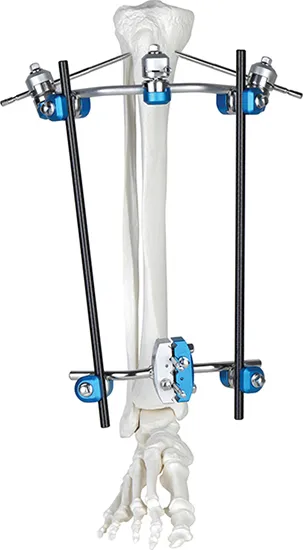

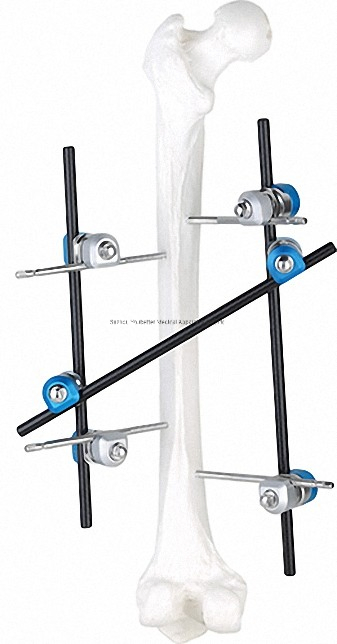

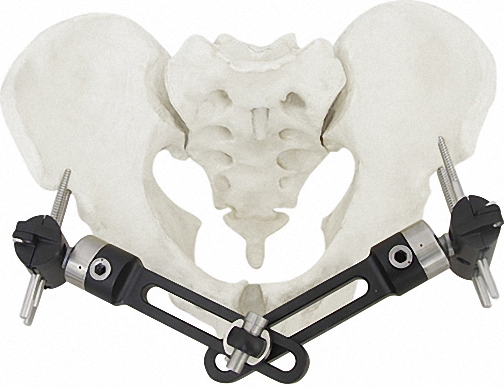

Titanium Bone Fixator Kit
Distinguished by groundbreaking technology and intuitive, user-friendly operation.
Facilitates independent arrangement of bone screws for proximal and distal fractures.
Innovative snap-fit design ensures streamlined and time-efficient surgical procedures.
Medical-grade aluminum and carbon fiber enhance fracture visualization and clarity.
Unparalleled stability and flexibility catering to diverse orthopedic needs.
Compact, space-saving frame designed for convenient transport and professional use.

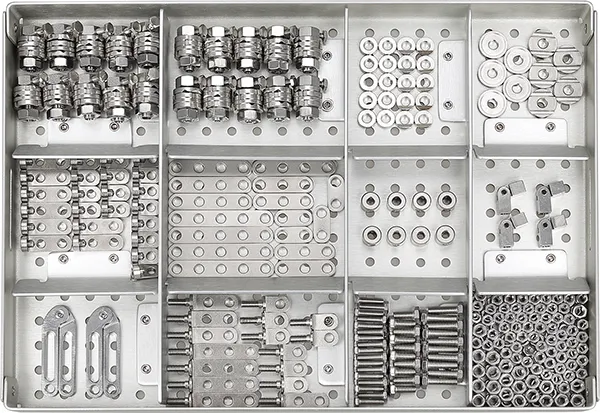

Titanium Bone Fixator Details

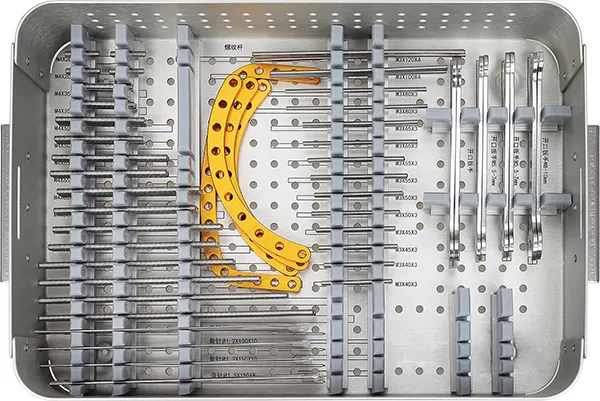

External Fixator Components

Technical Components & Parts

Component Name Specifications Quantity
Independent Couplingφ6*φ14(1.5-2.0)10
φ6*φ14(1.5)10
Needle Clipφ4*φ9 (φ1.0)5
φ4*φ9 (φ1.5)5
Cone Washerφ4*φ910
Double Groove Needle Clampφ4*φ14(2.0-2.5)5
Straight Connection Plateφ4 / φ34 each
Fixator (Hinge)M4*20mm4
Hex NutM3 / M490 each
Bone Screws1.0*150 / 1.2*150 / 1.5*15020/20/8

Clinical Applications

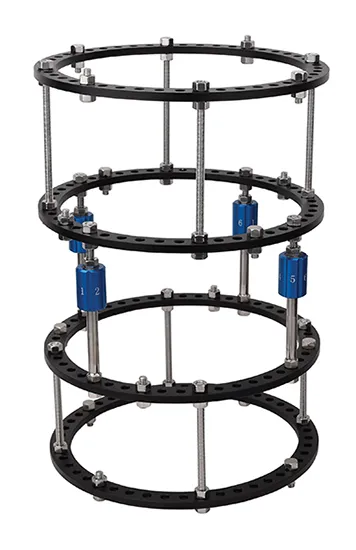

Lower Limbs Lengthening

Lower Limbs Lengthening
Used For Tibia Femur

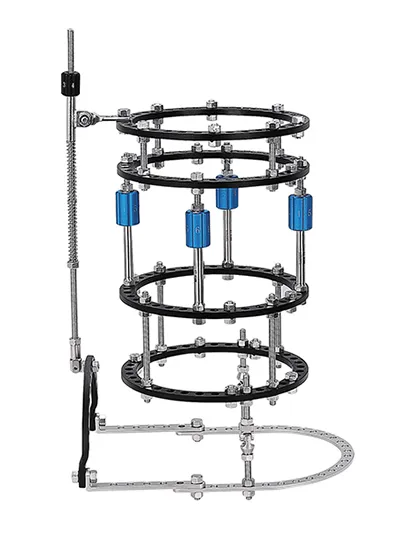

Orthopedic External Fixator

Orthopedic External Fixator
For Humeral & Tibial Epicondyle

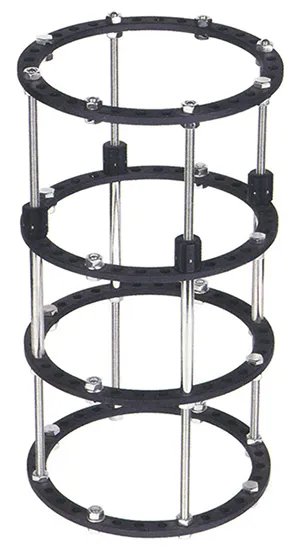

Ring Fixator

Ring Fixator
Used For Tibia Femur

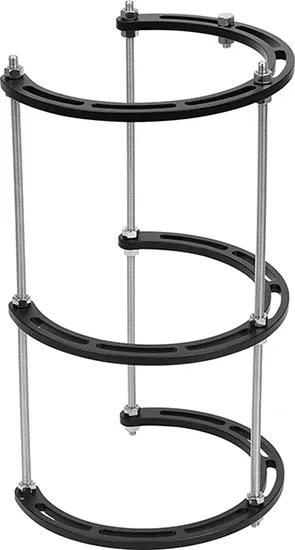

2/3 Ring Fixator

2/3 Ring Fixator
Universal Application

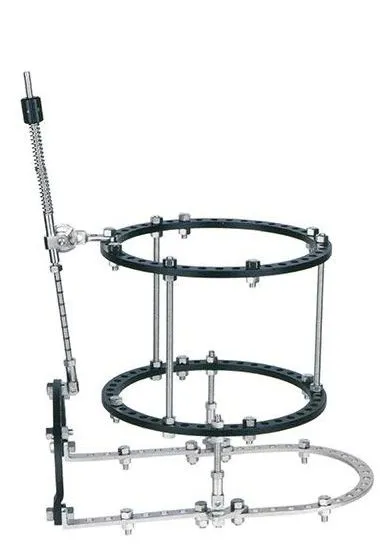

Ankle Joint Fixator

Ankle Joint Fixator
Used For Equinus

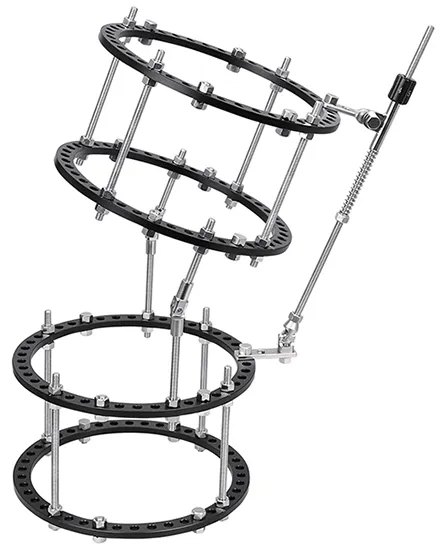

Knee Joint Fixator

Knee Joint Fixator
Used For Knee Joint

Frequently Asked Questions

What materials are the external fixators made of?
Our fixators are manufactured using high-grade Titanium Alloy and Stainless Steel, with some components using medical-grade aluminum and carbon fiber for better X-ray clarity.
Are these medical devices reusable?
Yes, the external fixation systems are designed to be reusable after following proper sterilization and maintenance protocols.
Which certifications do these products hold?
All our external fixation products are CE certified and produced under ISO13485 quality management system standards for medical devices.
Can the bone screws be arranged independently?
Yes, the system facilitates the independent arrangement of bone screws, allowing for precise management of both proximal and distal fractures.
Is the fixator frame suitable for complex fractures?
Absolutely. It is expertly designed to address complex fractures and soft tissue loss, providing unparalleled stability and flexibility.
How does the snap-fit design benefit the surgeon?
The innovative snap-fit design ensures streamlined and time-efficient surgical procedures, significantly saving valuable time in the operating room.
