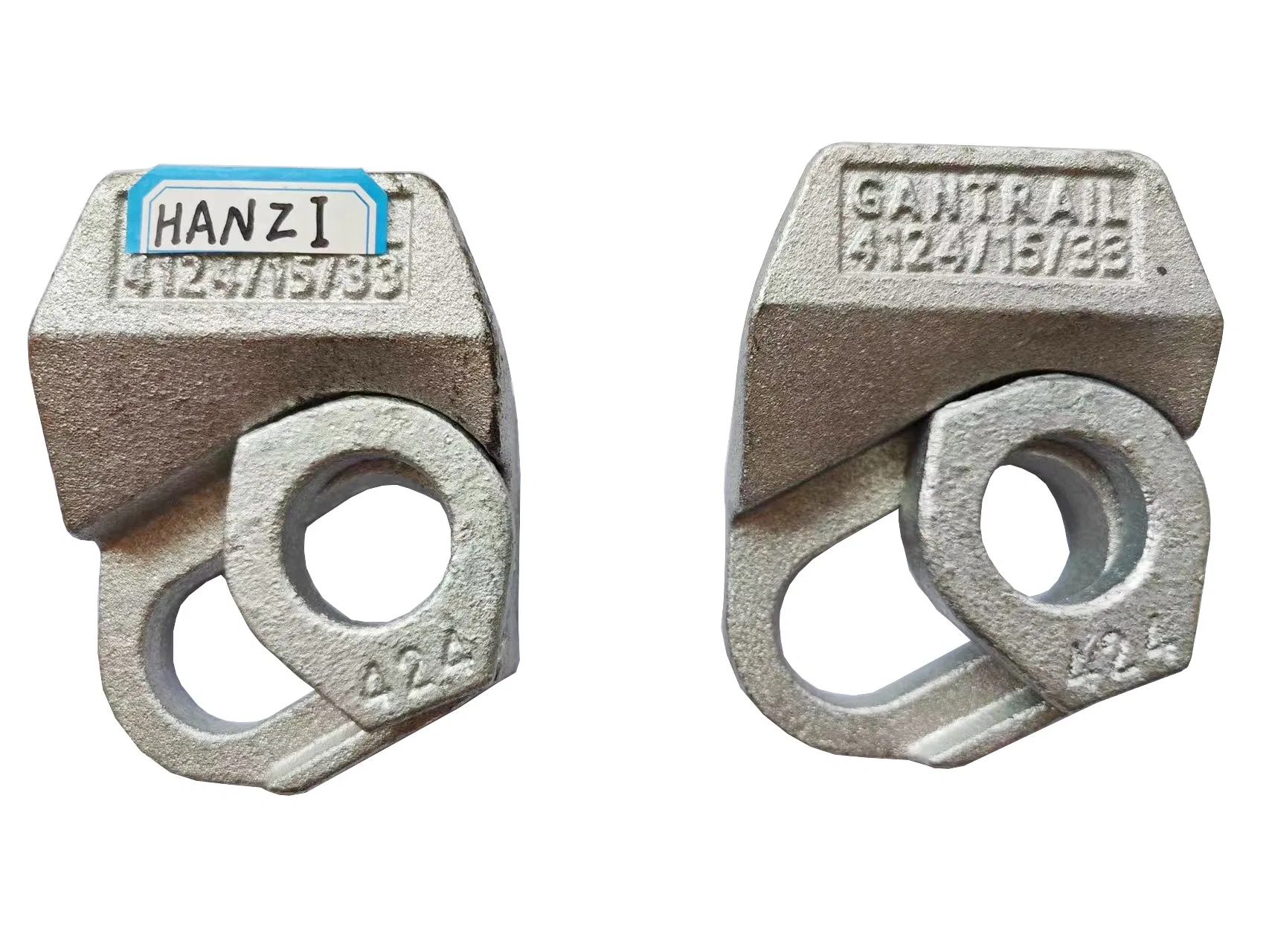

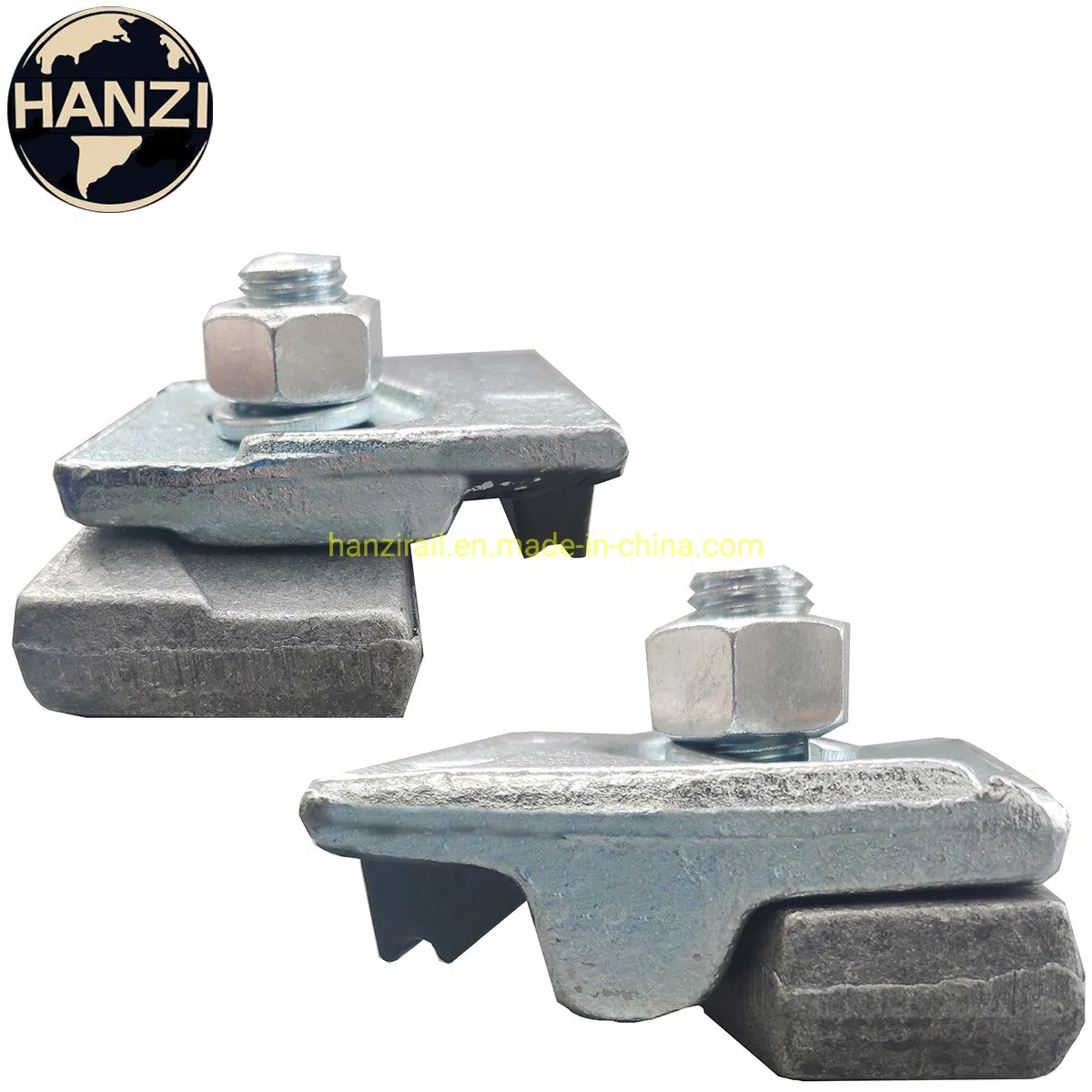

Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
1 / 5
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building
Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building

Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Rail Shoulder, E2055, E2056
Customized
Customized
Certification
ISO9001
Type
Shoulder
Product Name
Steel Rail Shoulders Weld on Shoulder for Railway
Surface
Natural
Part
Rail Shoulder
Bolt Grade
5.6
Specification
115RE, 136RE, UIC54, UIC60, 54E1, 60E1
Production Capacity
500,000 PCS/Month
⚙️ Product Description

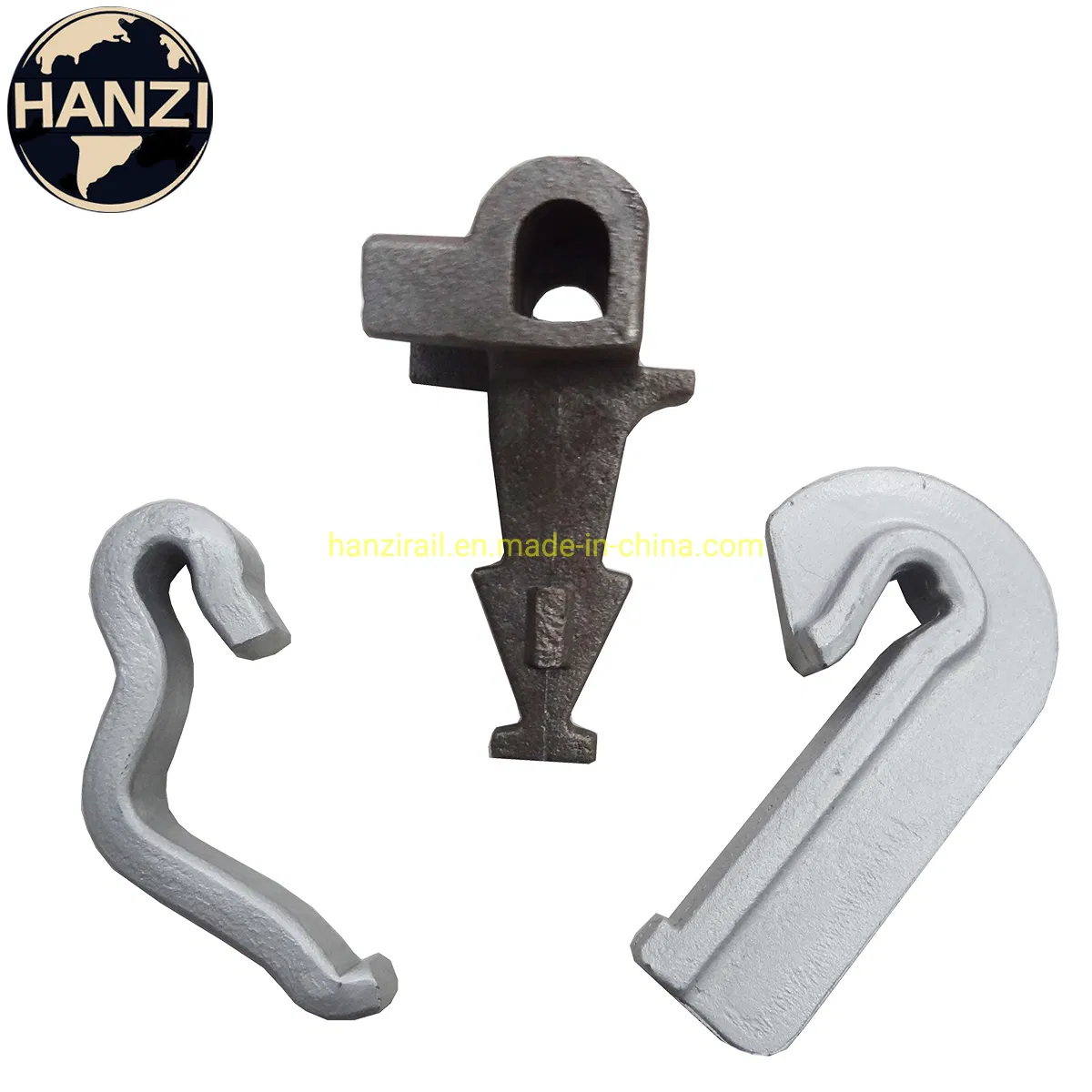

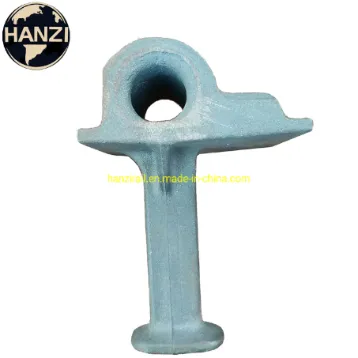

Cast-in Rail shoulders
Cast-in Rail Shoulders:

Prefabricated pieces in concrete sleepers, either single or double, used to secure elastic rails within a fastening system, mainly electronic fastenings. These are pre-embedded in concrete sleepers and used together with elastic clips.

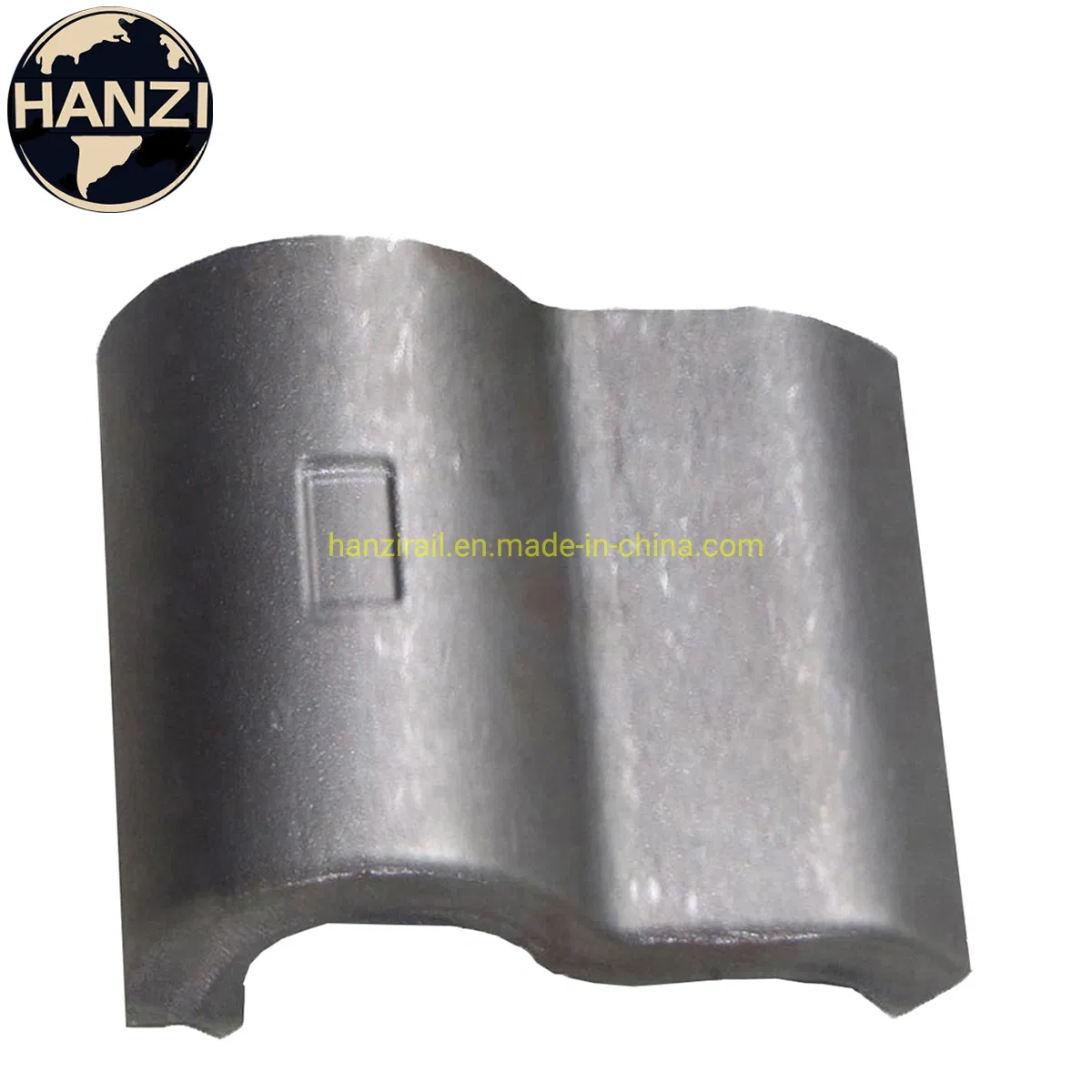

Weld-on Shoulders:

Designed for special trackwork locations such as switches, scales, steel structures, and maintenance facilities. Generally used on flat steel plates, these beveled shoulders facilitate welding to provide optimum lateral resistance and maximum clip-toe load.

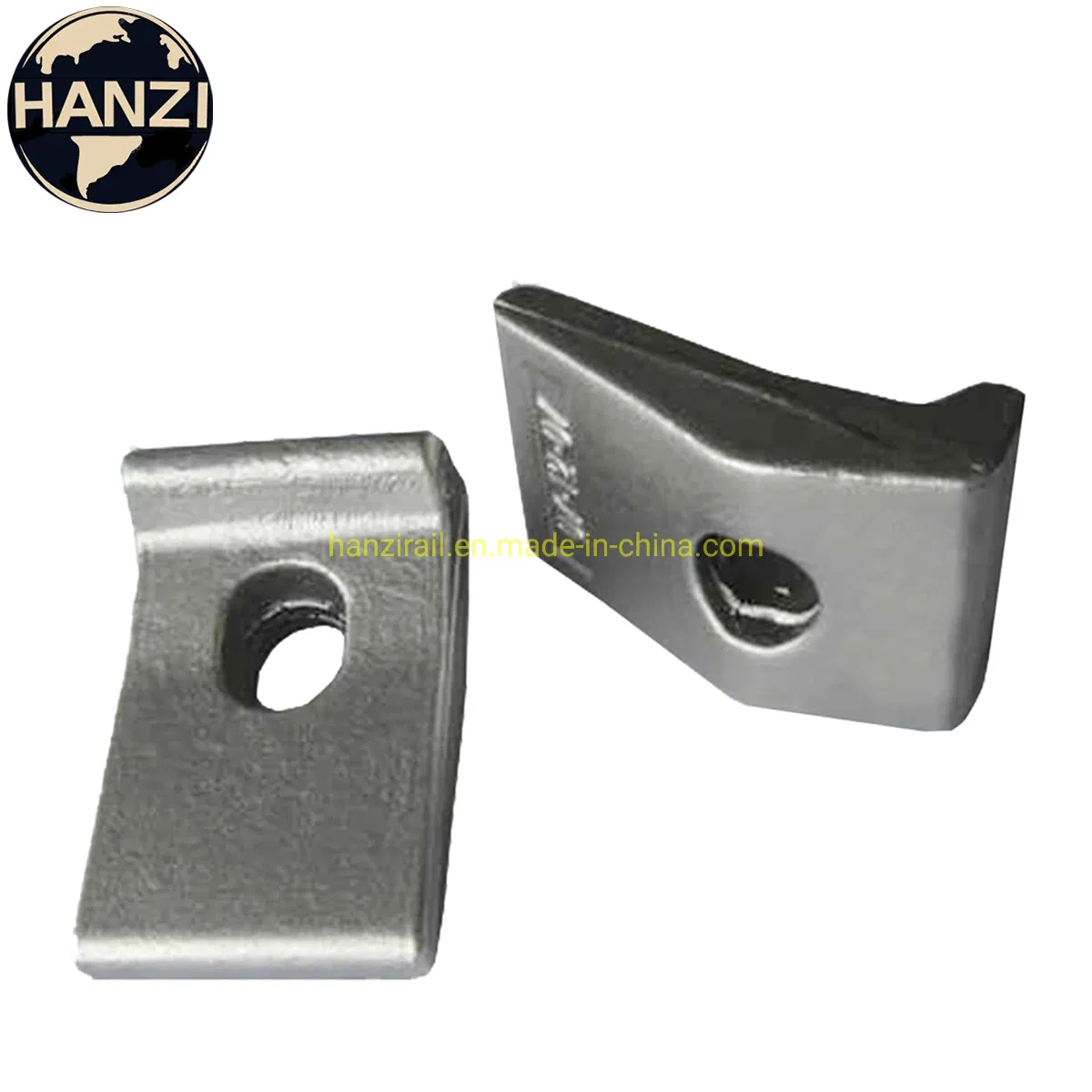

Weld-on shoulders
📊 Product Parameters
Material QT500-7 QT450-10 QT400-15
Tensile Strength ≥500 Mpa ≥450 Mpa ≥400 Mpa
Yield Strength ≥320 Mpa ≥310 Mpa ≥250 Mpa
Elongation ≥7 ≥10 ≥15
Hardness 170~230HB 160~210HB 130~180HB
📜 Certifications
Certificates
🌍 Exported Products Showcase

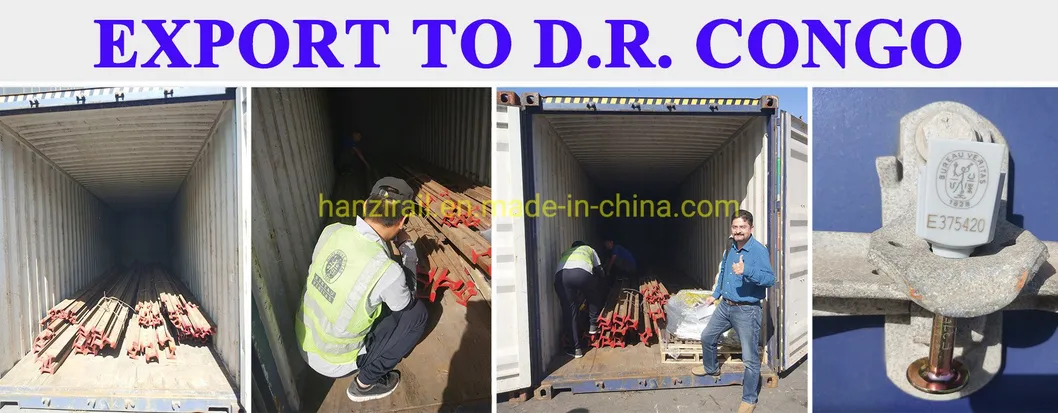

Exported Rail Product 1
Exported Rail Product 2
Exported Rail Product 3
Exported Rail Product 4
👍 Recommended Products

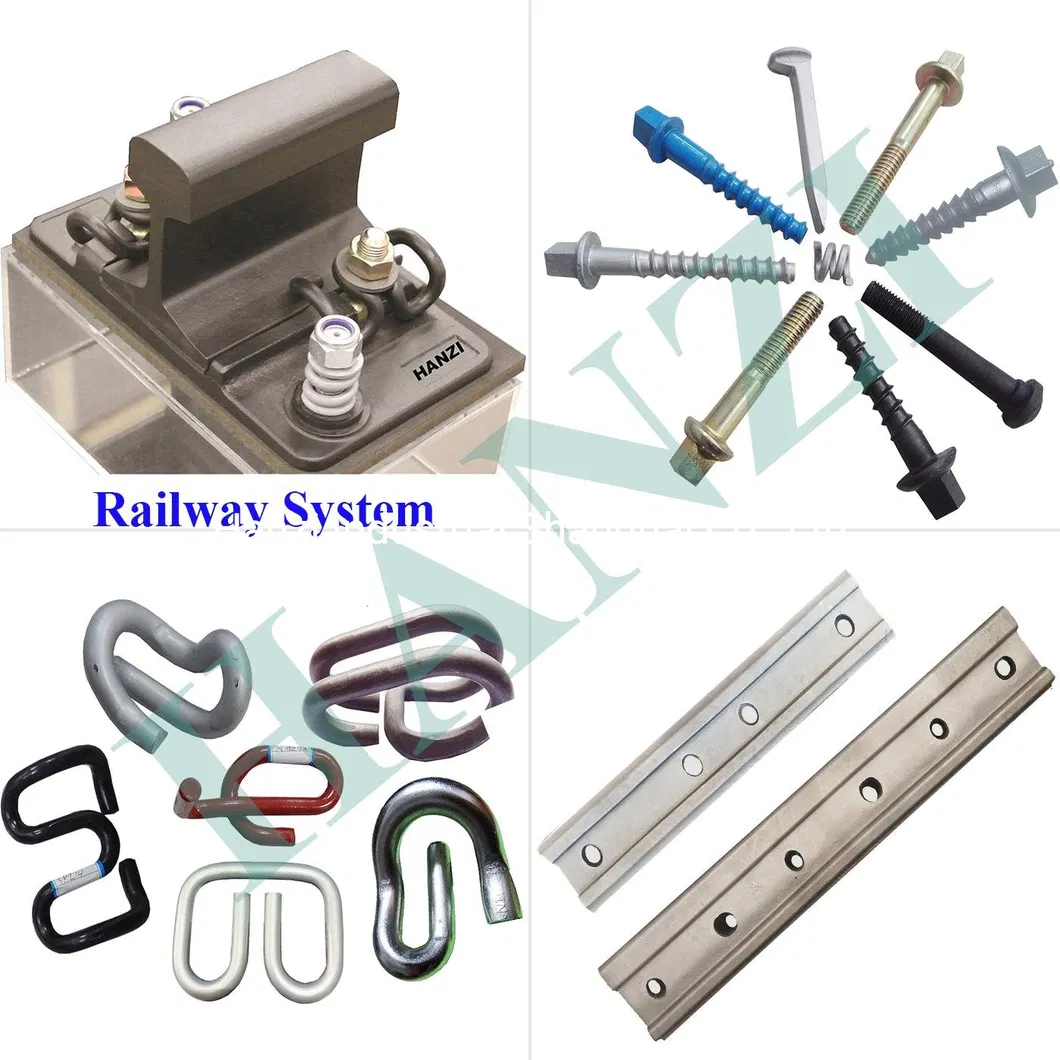

Recommended 1

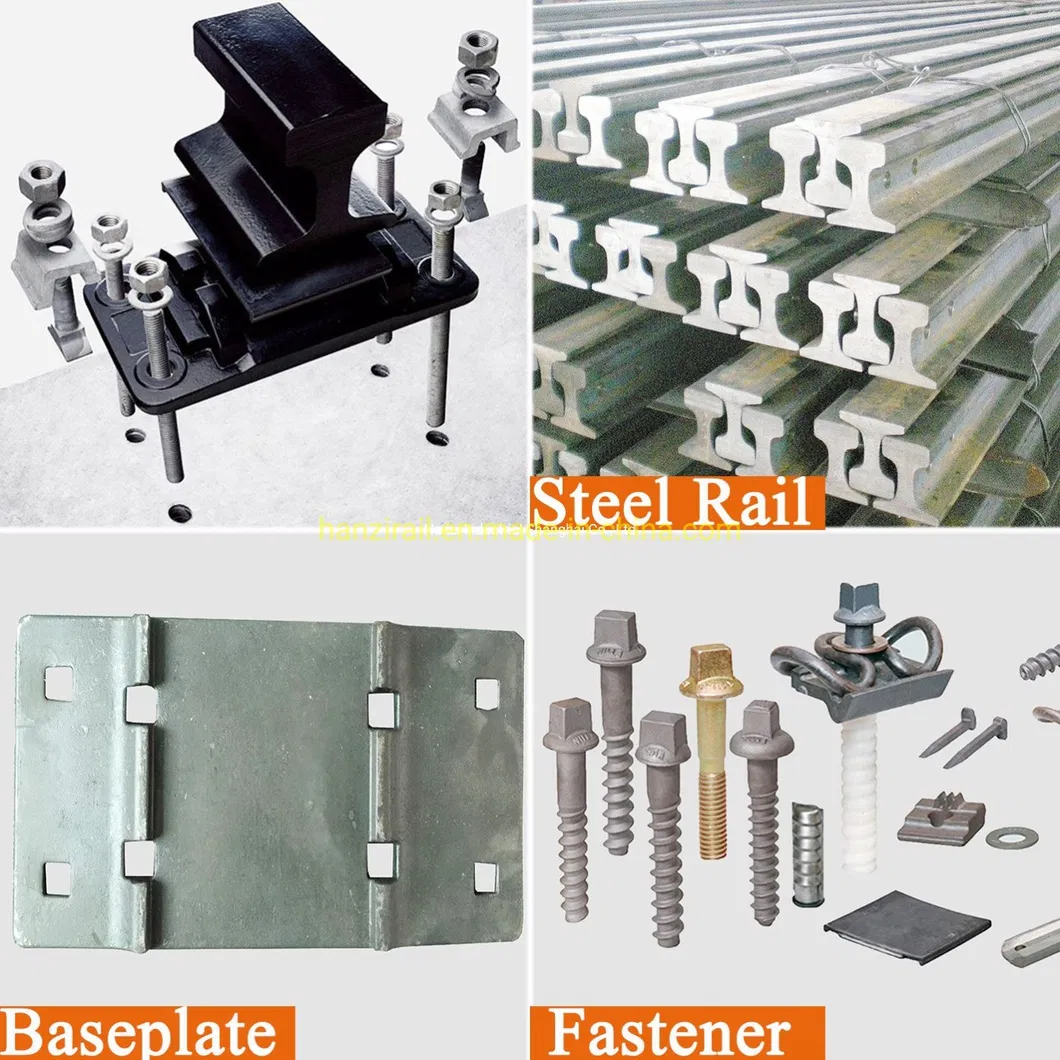

Recommended 2

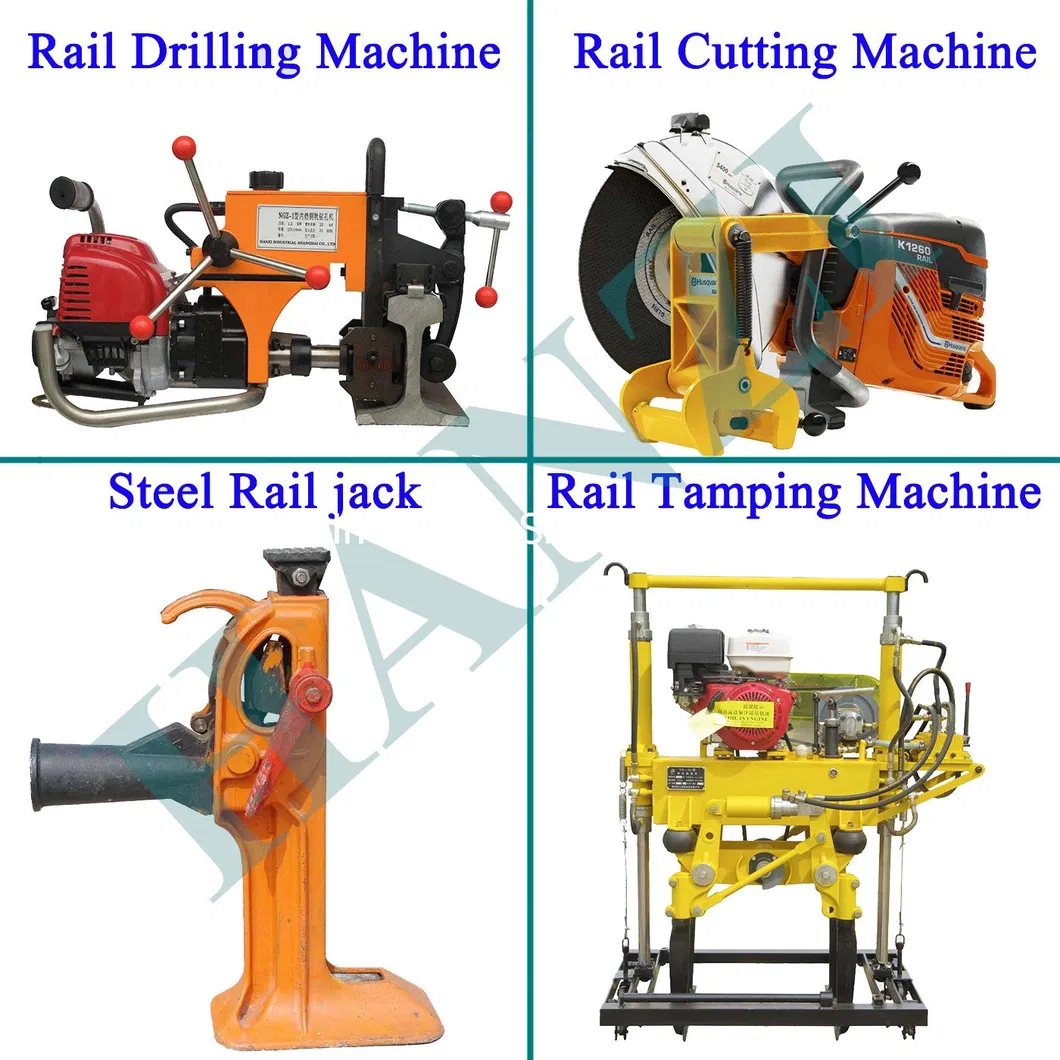

Recommended 3
📦 Packaging & Shipping
Package Size
20.00cm * 10.00cm * 15.00cm
Package Gross Weight
10.000kg
Transport Package
Pallets
Packaging 1
Shipping 2
❓ Frequently Asked Questions
What is the difference between Cast-in and Weld-on shoulders?
Cast-in shoulders are pre-embedded in concrete sleepers during manufacture, while Weld-on shoulders are welded onto flat steel plates, typically used in special trackwork like switches and scales.
Which rail specifications do these shoulders support?
Our rail shoulders are compatible with major standards including 115RE, 136RE, UIC54, UIC60, 54E1, and 60E1.
What materials are used for the production of rail shoulders?
We primarily use Ductile Cast Iron grades such as QT500-7, QT450-10, and QT400-15, ensuring high tensile strength and durability.
Can the surface finish or color be customized?
Yes, while the standard surface is natural, we offer customized colors and surface treatments according to specific client requirements.
What is your monthly production capacity?
Our facility has a production capacity of approximately 500,000 pieces per month to ensure timely delivery for large-scale railway projects.
Are your products certified?
Yes, our manufacturing processes and products are certified under the ISO9001 quality management system.
