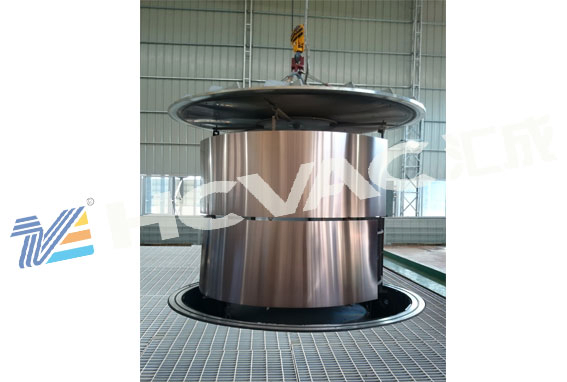

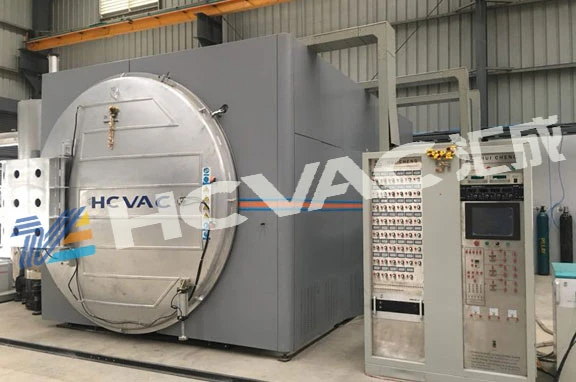

Stainless Steel Sheet PVD Vacuum Plating System

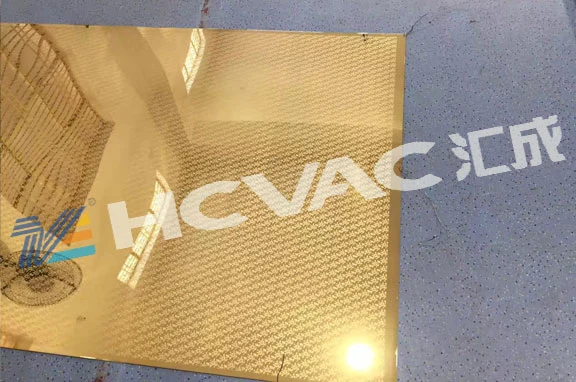

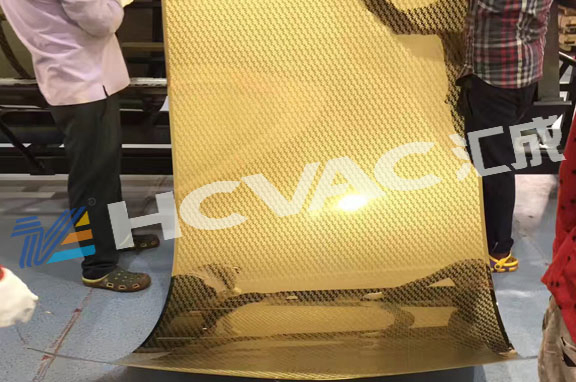

The machine can achieve a wide range of colors on stainless steel products. We offer machine diameters from 800mm to 3200mm and heights from 800mm to 7200mm. It is ideal for coating small parts, stainless steel sheets, pipes, counters, connections, and furniture such as chairs. The ion plating technique provides a real metal texture, significantly superior to chemical coating methods.
🌈 PVD COATING COLOR SERIES:

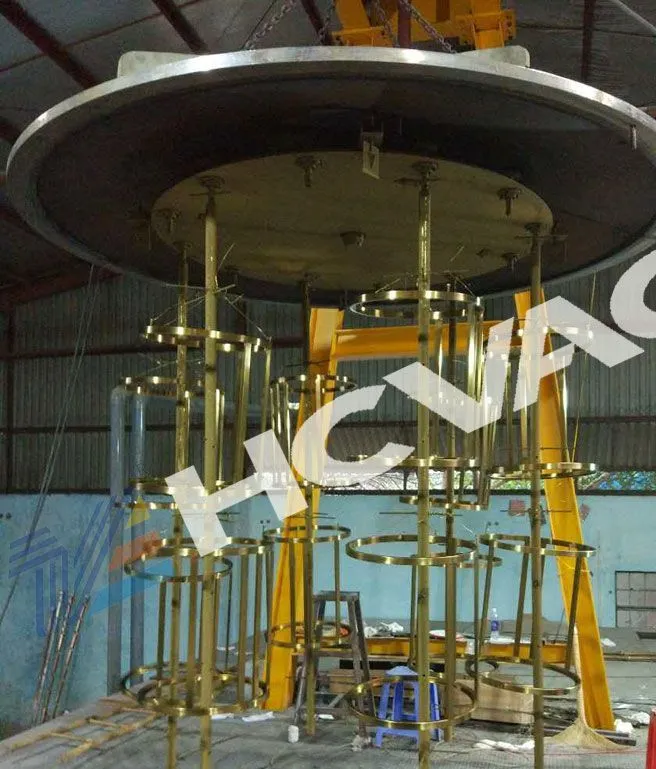

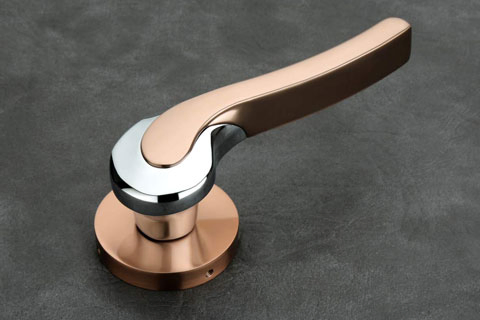

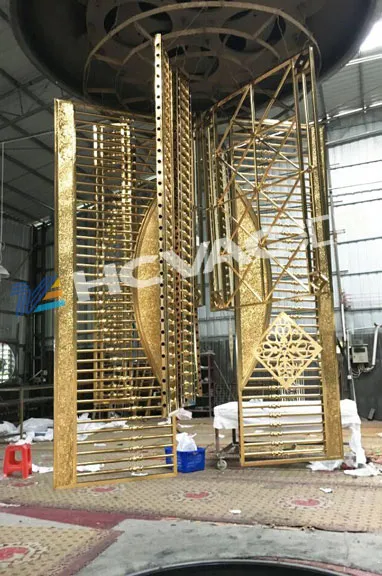

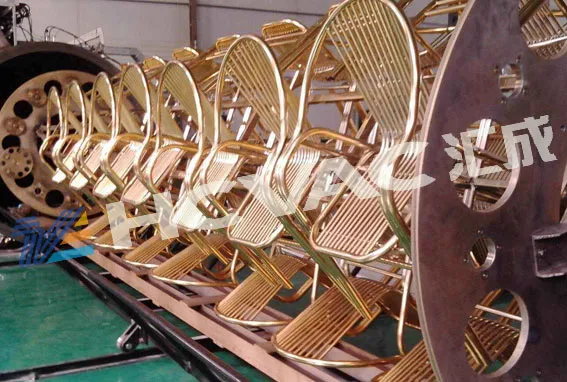

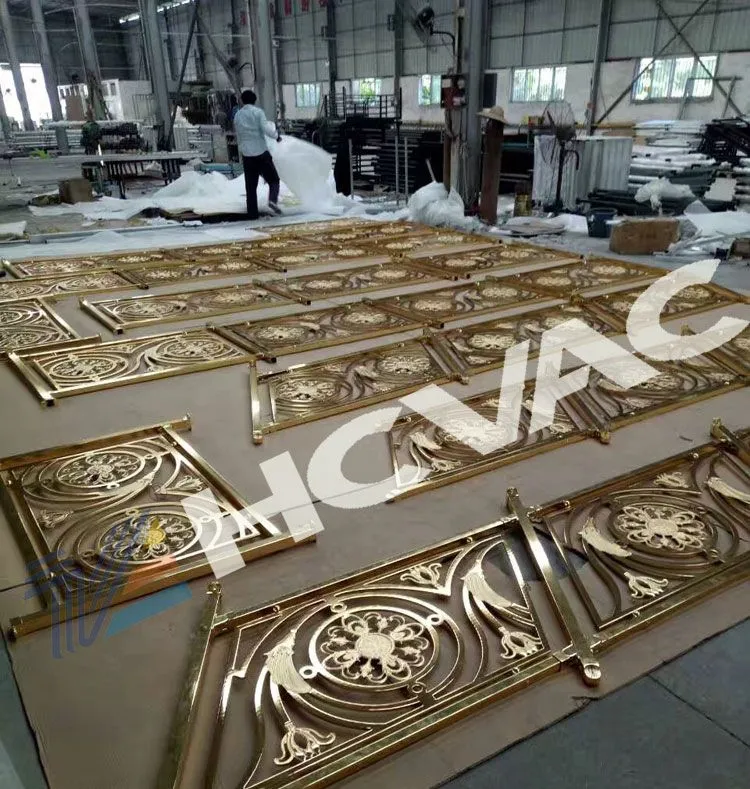

Application Range: Suitable for Staircases, Hotel trolleys, chairs, tables, dishes, spoons, coffee cups, and more. Maximum load capacity up to Diameter 2000mm * Height 3500mm.
| Model | HCCA-1818 | HCCA-2236 | HCCA-2270 |
|---|---|---|---|
| Dimension | D1800*H1800mm | D2200*H3600mm | D2200*L7000mm |
| Coating Mode | Arc targets + Sputtering | Arc targets | Arc targets |
| Power Source | Electric-arc power, Filament power, Pulsed bias power supply | ||
| Vacuum System | Diffusion pump + Roots pump + Mechanical pump (5.0*10⁻⁴Pa) | ||
| Control Mode | Manual/Automatic/PLC + HMI (Touch Screen) | ||
