Horaizon Orthopedic Implants
Horaizon Orthopedic Implants

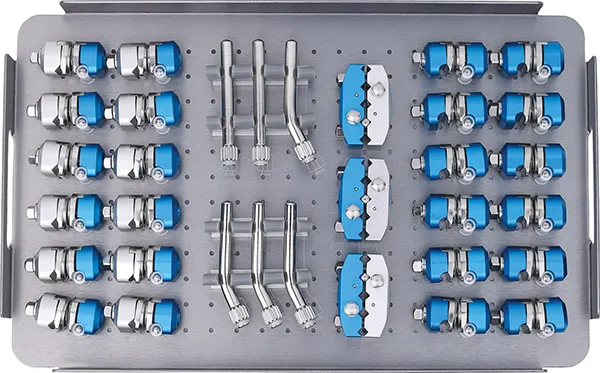

| Component Name | Specification | Quantity |
|---|---|---|
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / φ5*150 / φ5*130 / φ5*120 | 4/8/4/4 |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 2/2/4/4 |
| Semi-Circular Curved Connecting Rod | φ8*160 / φ8*200 | 1/1 |
| T-Wrench / Stabilization Wrench | #7 / #22 | 1/1 |
| Torque Wrench / Hand Drill | #7 / φ5 | 1/1 |
| Screw Driver / Thumb Wheel | φ5 / #5/7 | 1/1 |

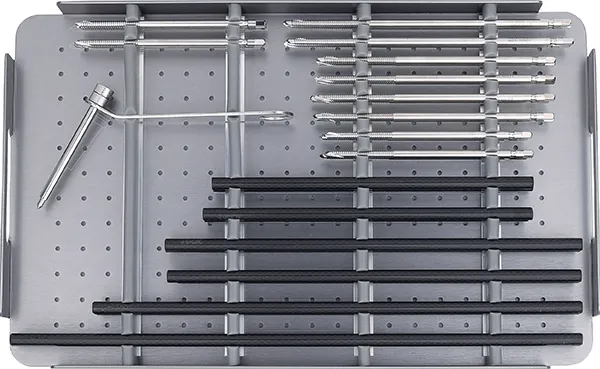

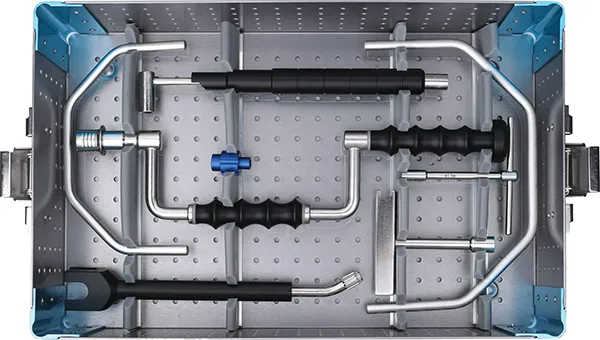

| Instrument Set | - | 1 |

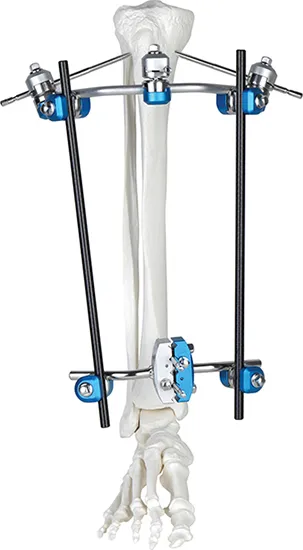

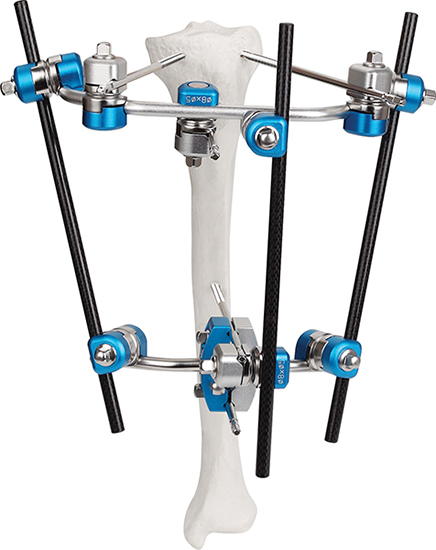

| Proximal Tibia External Fixator | |
| Rod to Rod Coupling φ8/8 | 4 Pieces |
| Pin To Rod Coupling φ8/4-5 | 3 Pieces |
| 5-Hole Pin Clamp φ8/5 | 1 Piece |
| 30° Post φ8 | 2 Pieces |
| Self Drilling Bone Screws 5*150mm | 5 Pieces |

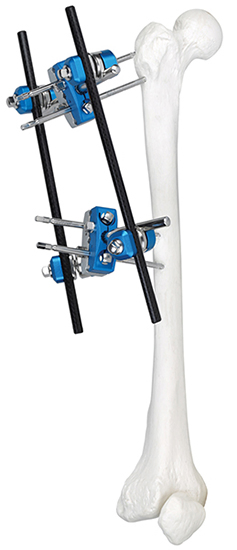

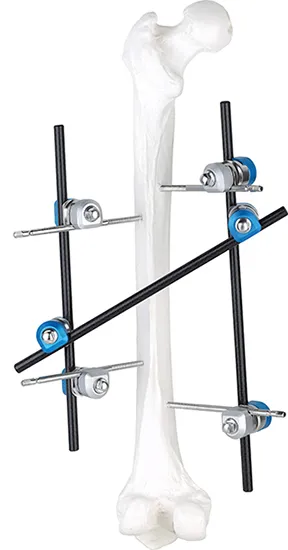

| Femoral Shaft Fixator | |
| Rod To Rod Coupling φ8/8 | 2 Pieces |
| Pin To Rod Coupling φ8/4-5 | 4 Pieces |
| Carbon Fibre Rod (Various) | 3 Pieces |
| Self Drilling Bone Screws 5*150mm | 4 Pieces |

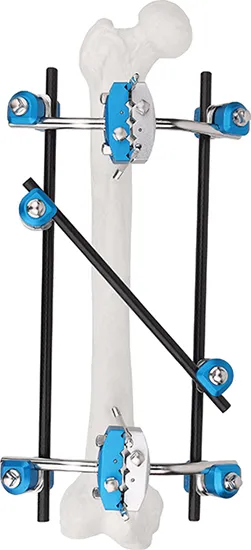

| Half Ring Fixator (Standard) | |
| Used For | Tibia Perone |
| Rod To Rod Coupling φ8/8 | 6 Pieces |
| 5-Hole Pin Clamp φ8/5 | 2 Pieces |
| Carbon Fibre Rod 8*300mm | 2 Pieces |

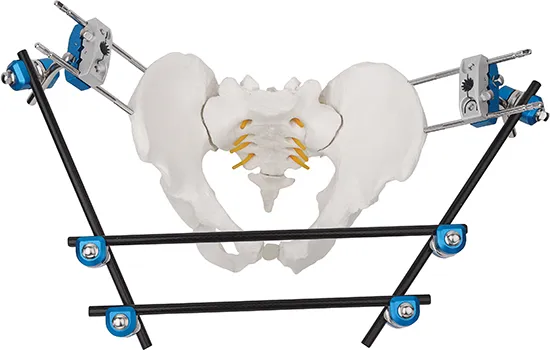

| Pelvic Fixator | |
| Used For | Pelvic Fractures |
| Rod To Rod Coupling | 6 Pieces |
| Carbon Fibre Rod | 4 Pieces |
| Bone Screws 5*150mm | 4 Pieces |

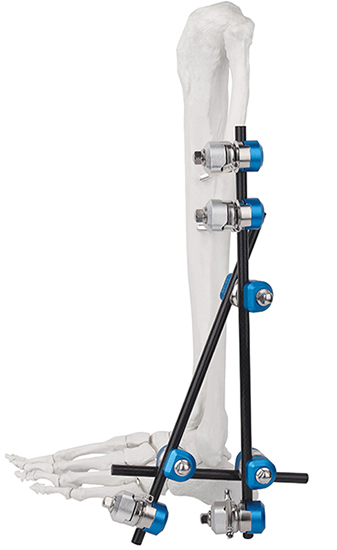

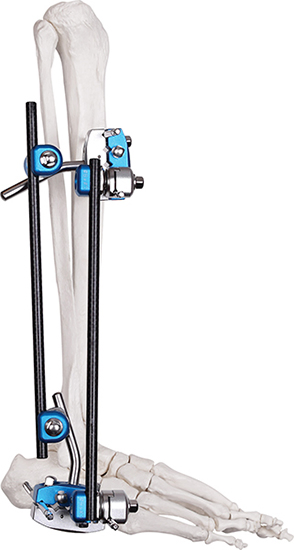

| Ankle Joint Fixator | |
| Rod To Rod Coupling φ8/8 | 3 Pieces |
| Carbon Fibre Rod 8*250mm | 2 Pieces |
| Self Drilling Bone Screws 5*150mm | 3 Pieces |
| Self Drilling Bone Screws 4*130mm | 1 Piece |
