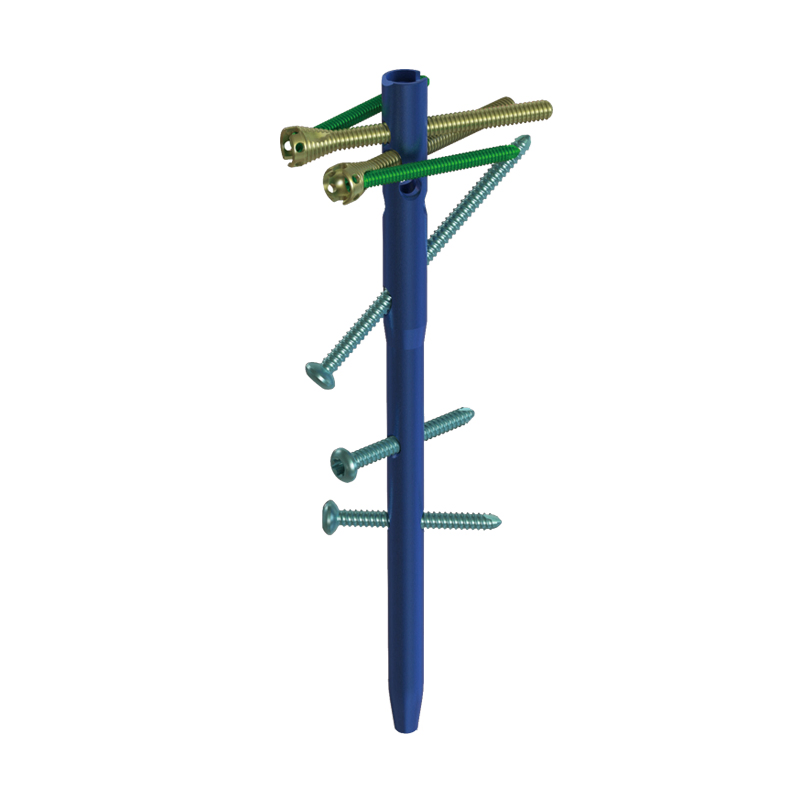

Premium Humeral Intramedullary Nail for Enhanced Fracture Support

📋 Basic Information

Condition

New

Usage

Fracture Fixation

Using Site

Humeral

Type

Trauma

Implant Type

Intramedullary Nail

Specification

Titanium Alloy TC4

🔬 Product Introduction

Medical Background: Proximal humeral fractures are among the most common fractures, accounting for 4%–5% of all fractures. Mechanism of injury usually occurs when the elbow strikes the ground or the arm is braced during a fall, especially in elderly patients, or when the shoulder joint directly sustains external force.

Core Features:

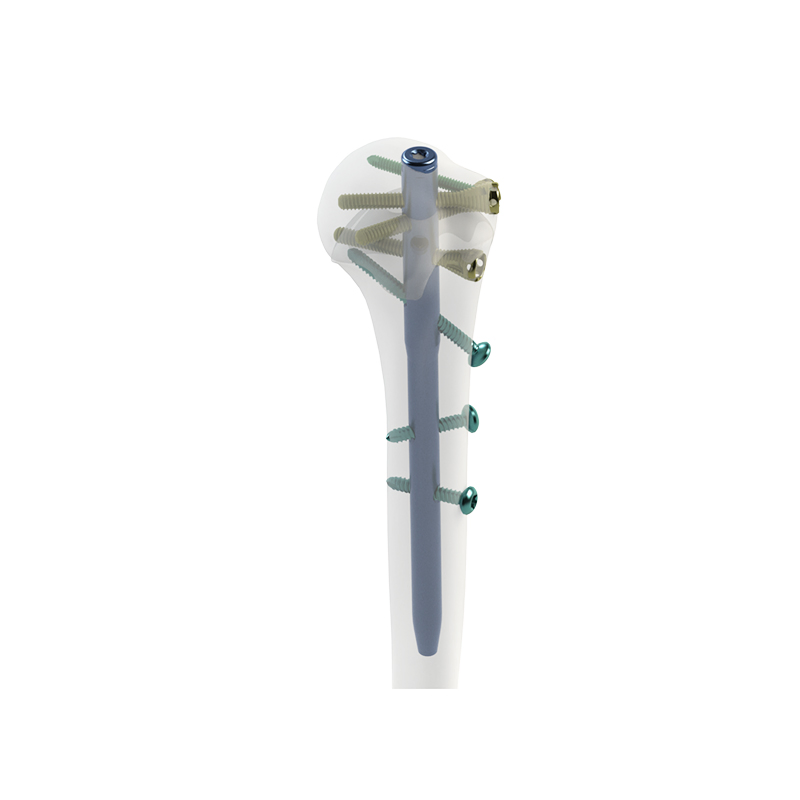

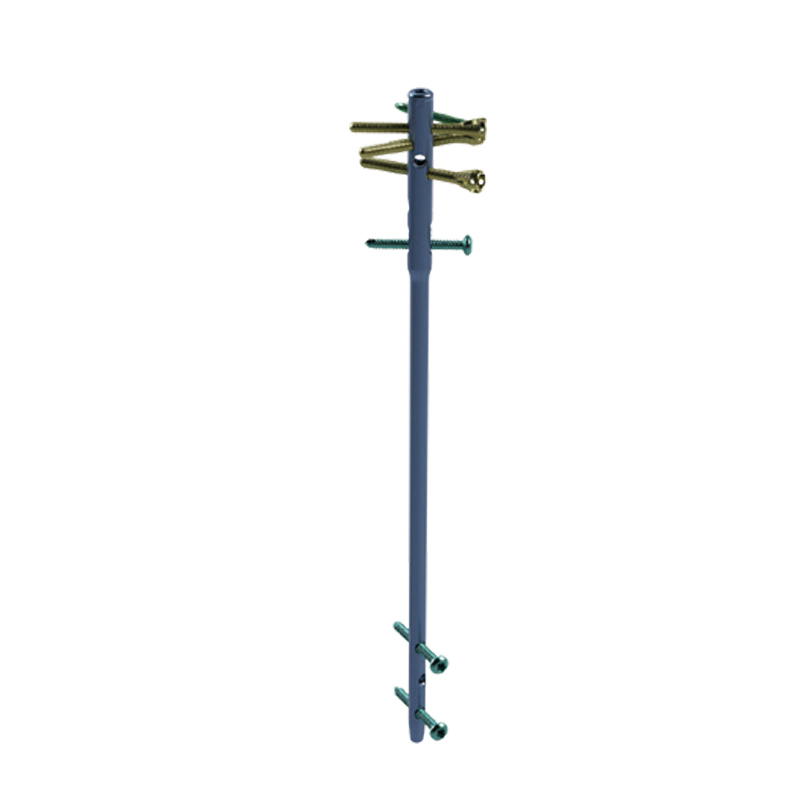

Unique and innovative "nail-in-nail" technology to enhance the fixation effect of proximal locking screws.
Proximal screws are countersunk screws, with at least three lateral screws implanted to ensure basic structural stability.
Oblique upward supporting lock provides more stable medial support for the humeral head.
Multi-planar distal locking to avoid neurovascular structures while providing stable fixation.
Central implantation of the main nail with an ultra-low notch design to protect the supraspinatus muscle and surrounding tissues.

Screw Configuration:

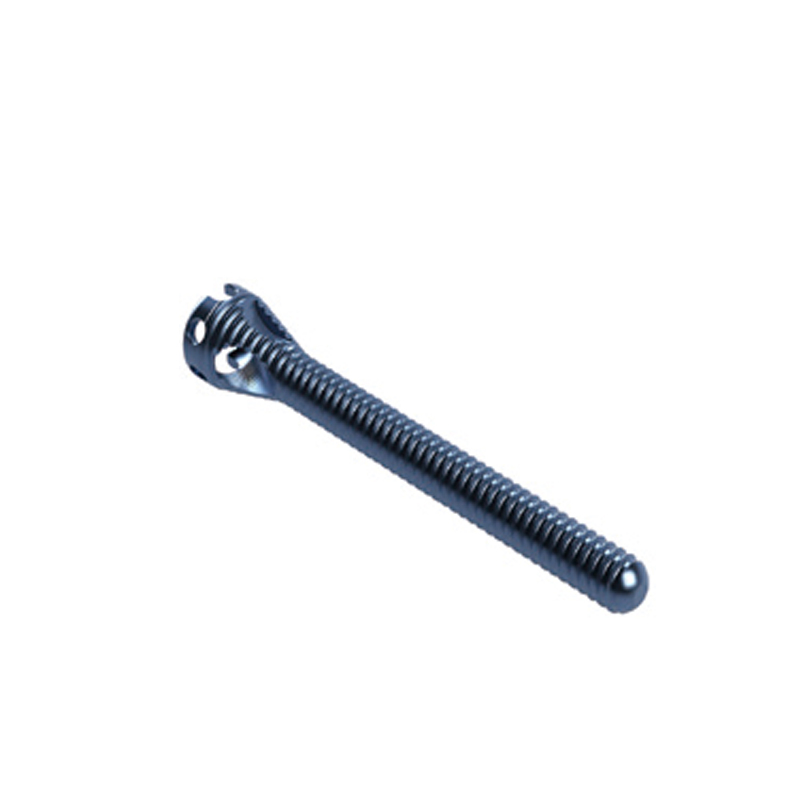

Ø3.5 mm interlocking screws: Additional interlocking screws ("screw-in-screw" technique) can be inserted through the head of the lateral screws to enhance internal fixation stability. Effective for patients with poor bone quality.

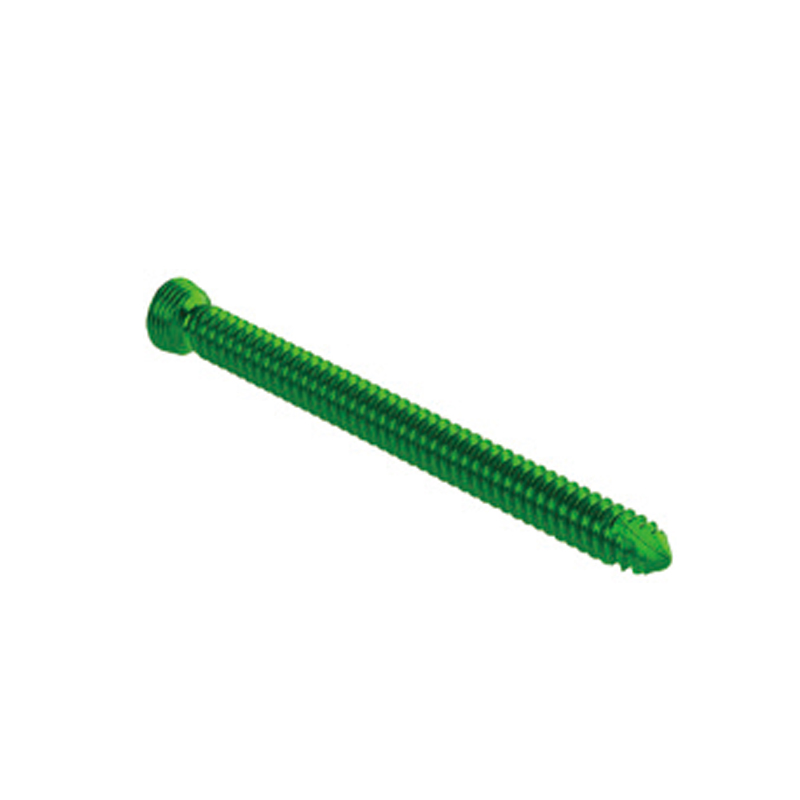

Ø4.5 mm interlocking screws: Three screws inserted laterally into the greater tuberosity ensure basic structural stability.
Ø4.0 mm ascending screw: Supports the medial calcar region of the humerus, helping to stabilize fractures with medial comminution.
Ø4.0 mm interlocking screws: Two distal interlocking screws are positioned in different planes to reduce implant toggling.

🏥 Application & Indications

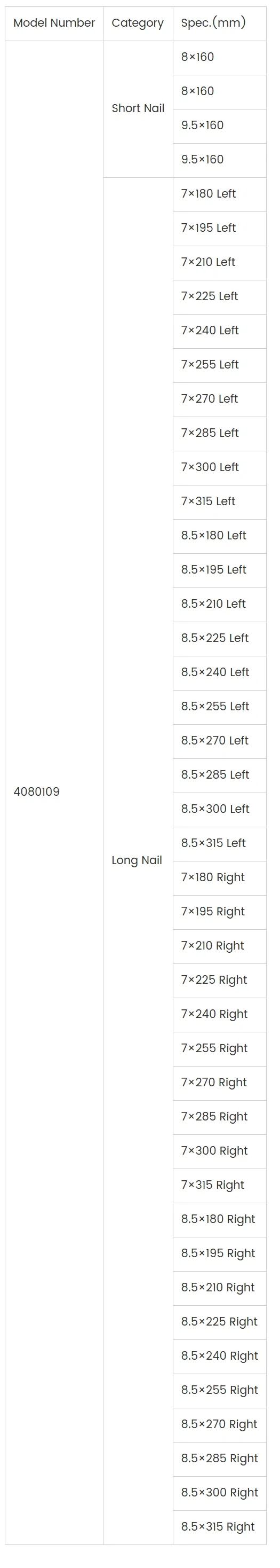

Short Nail (Length: 160 mm; Diameter: 8 mm, 9.5 mm):

Two-part surgical neck fractures of the humerus
Three-part surgical neck fractures of the humerus
Four-part surgical neck fractures of the humerus

Long Nail (Length: 180–315 mm; Diameter: 7 mm, 8.5 mm):

Proximal humeral fractures combined with humeral shaft fractures
Humeral shaft fractures
Impending pathological fractures

🖼️ Visual Display

🏢 Manufacturer Profile

Professional Orthopedic Manufacturer You Can Trust

We are a leading manufacturer of standardized orthopedic implants and instruments for global distributors and importers. Our full product range covers trauma, spine, joints, sports medicine, and CMF — all supported by complete surgical instrument sets.

With in-house R&D, a certified lab, and modern production lines, we support OEM/ODM services for partners who need private label or custom solutions. We focus on reliable, scalable manufacturing to help partners grow their market.

❓ Frequently Asked Questions

Could you provide some details on the shipping methods and associated costs?

We typically utilize courier services for shipping, but we can also accommodate postal services upon your request. Shipping costs are determined by the destination, package size, and weight.

Are your products certified with ISO 13485?

Yes, our company holds the EN ISO 13485 certification, ensuring our products meet the stringent requirements for safety and performance in the medical device industry.

What is the minimum order quantity or value that we can place?

Our standard minimum order value is US$1000. However, we offer samples at cost upon request for product evaluation before committing to a larger order.

Can we purchase products similar to those in your catalogue but not currently listed?

Yes, we accommodate custom orders. Please provide pictures or samples of the desired product, and we will work with you to create a similar item.

Do you maintain stock for the products listed in your catalogue?

We maintain stock for most products with regular monthly production cycles. Stock levels vary based on demand, so please consult our team for current availability.
