Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
1 / 5
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization: Available
Type: Power Drill
Kind: Orthopedics
Send Inquiry

Product Description

📋

Basic Info.

Model NO.
ND-3511
Certification
CE, ISO13485
Group
Adult
Operating Principle
Total Hip Replacement
Product Name
Surgical Power Drill
MOQ
1 Set
Advantage
Professional Manufacture
Warranty
2 Years
Shipping
Door to Door Express Courier
Motor
Brushless Motor
Instrument Classification
Class II
Package
Aluminum Box
Voltage
100V-240V
Sterilizing Time
About 20 Mins
Torque
750g/Cm
Working Voltage
14.4V
🩺

Product Description

Medical drill tools equipment orthopedic low-speed endoprosthesis total Arthroplasty replacement

Our medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. K-wires can be used in intermediary interlocking nail surgery or arthroscopic surgery. The whole unit is autoclavable. An imported motor ensures low noise, high speed, proper alignment, and a long service life. The machine comes with a comprehensive warranty. It can adapt to various flexible reamers and chucks easily during the surgical process.

📊

1. Technical Data

Working Voltage14.4V
Output Power130W
Unit rise in Temperature≤ 25ºC
Input VoltageAC 220V, 50Hz
Output Voltage14.4V, 900mA
Charger Input Power30VA
Charging time3 hours
Speed300r/min
Non-loaded noise63dB(A)
Radial run-out0.5mm
Torque33000gcm
✅

2. Product Technical Merits

  • Designed specifically for joint operations.

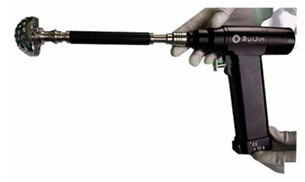

  • Low speed with great torque; compatible with any kind of acetabulum burnishing tools and medullary cavity expanding tools.
  • Main unit can be sterilized by high temperature and high pressure up to 135 ºC.
  • Excellent quality, portable, low noise, and variable speed control.
  • Carbonless motor available for increased power, allowing easy selection of power during operation.
  • Scientific balance technics reduce vibration and enhance handpiece control for comfortable operation.
  • High concentricity ensures precision in polishing the acetabulum during HIP operations.
  • Large torsional moment provides powerful polishing capabilities.
🖼️

3. Product Display

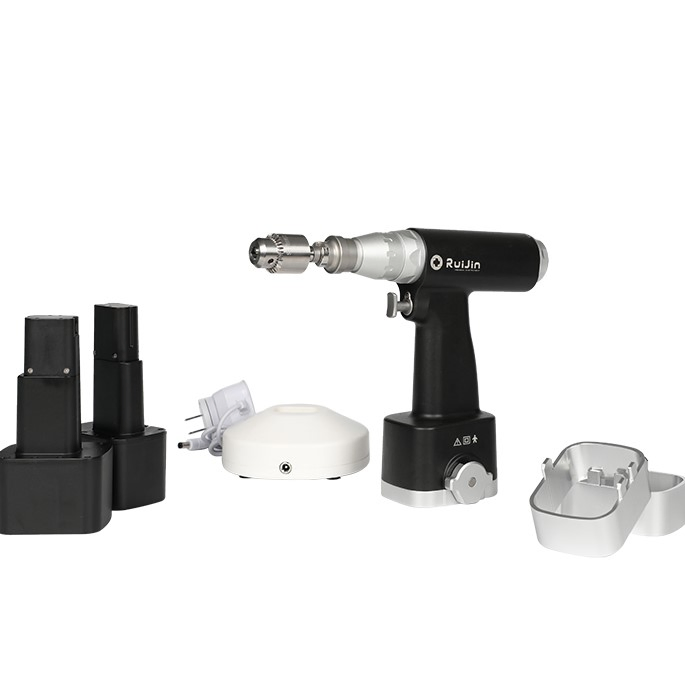

Standard Configuration:

  • One handpiece
  • One charger
  • Two batteries
  • One sterilizing channel
  • One drill chuck
  • One aluminum alloy box

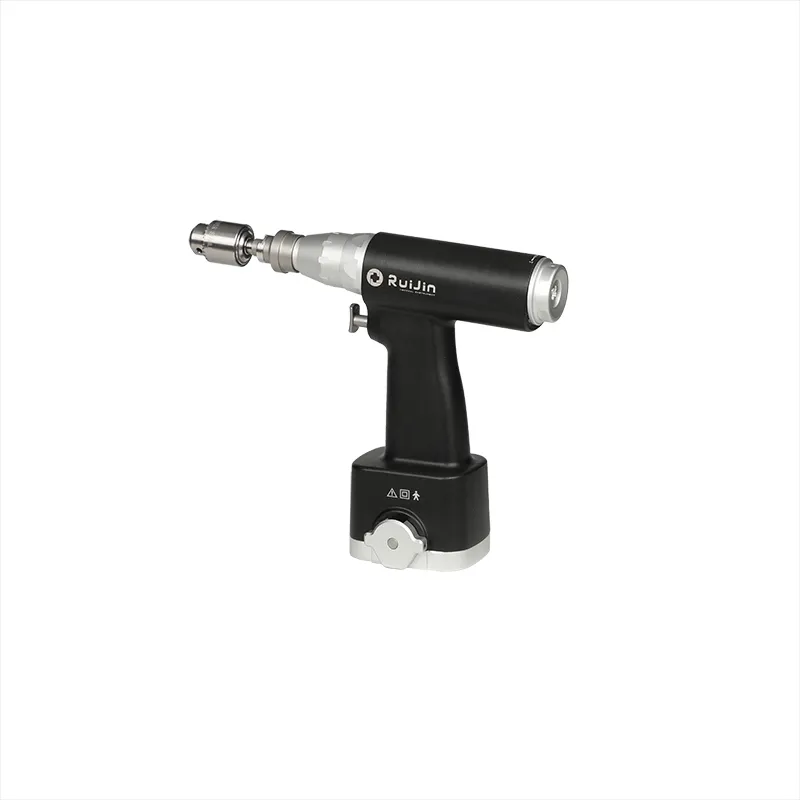

Hip joint drill with various adaptor for optional: Stryker, AO, Hudson, Synthes, etc.

Medical Drill Tools

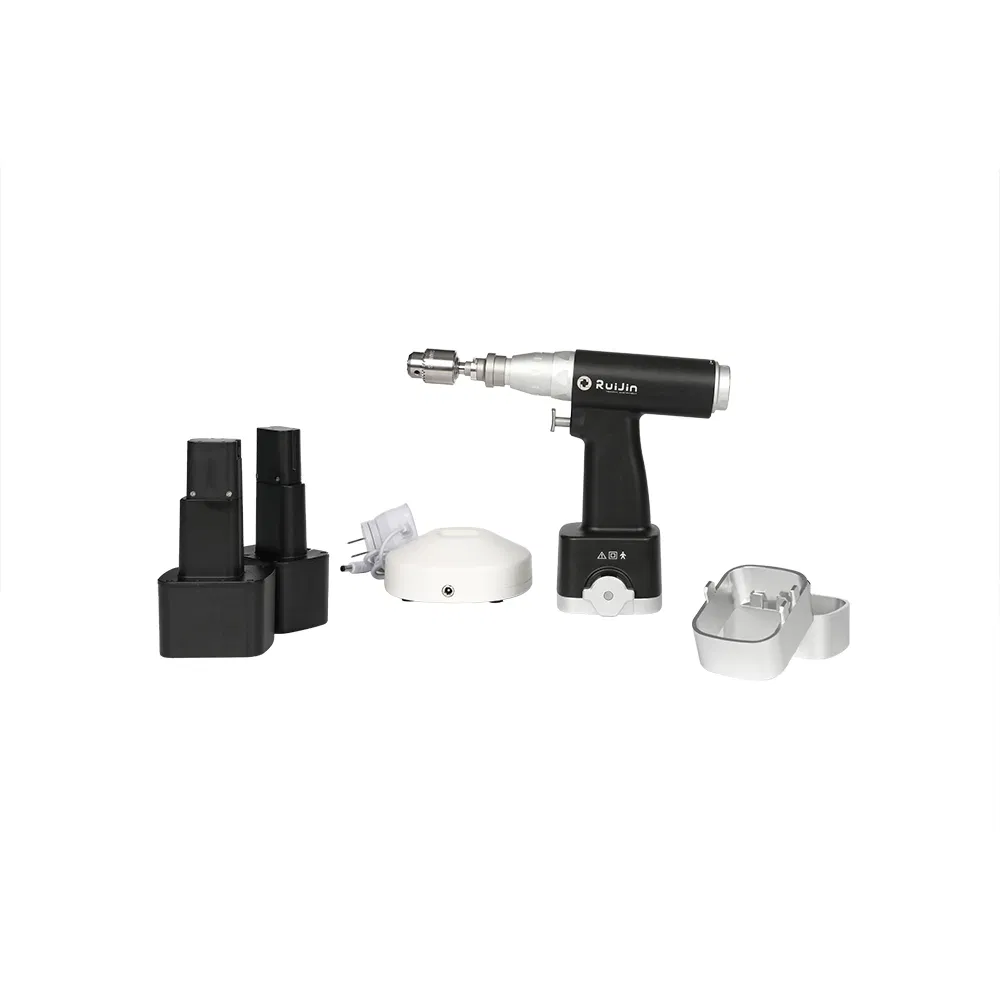

Each set with 2pcs batteries included.

Batteries included

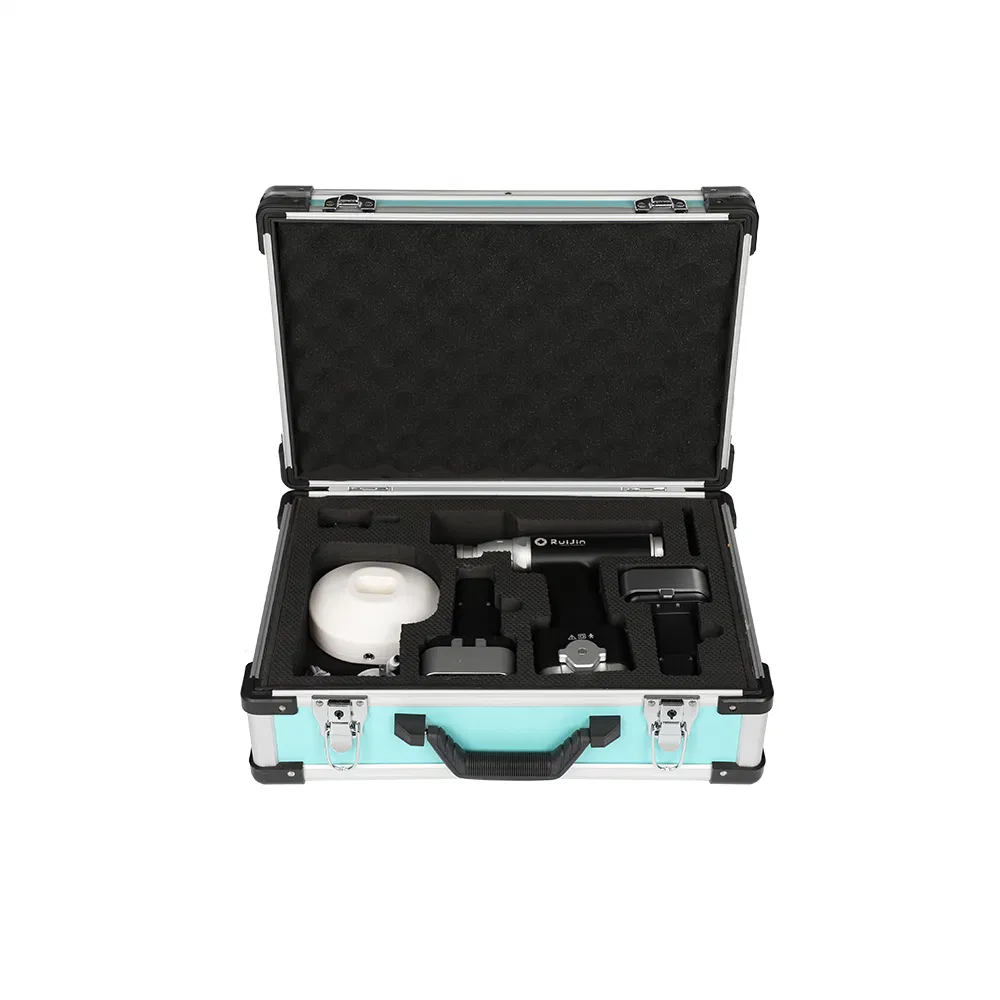

Aluminum case for protection.

Aluminum Case

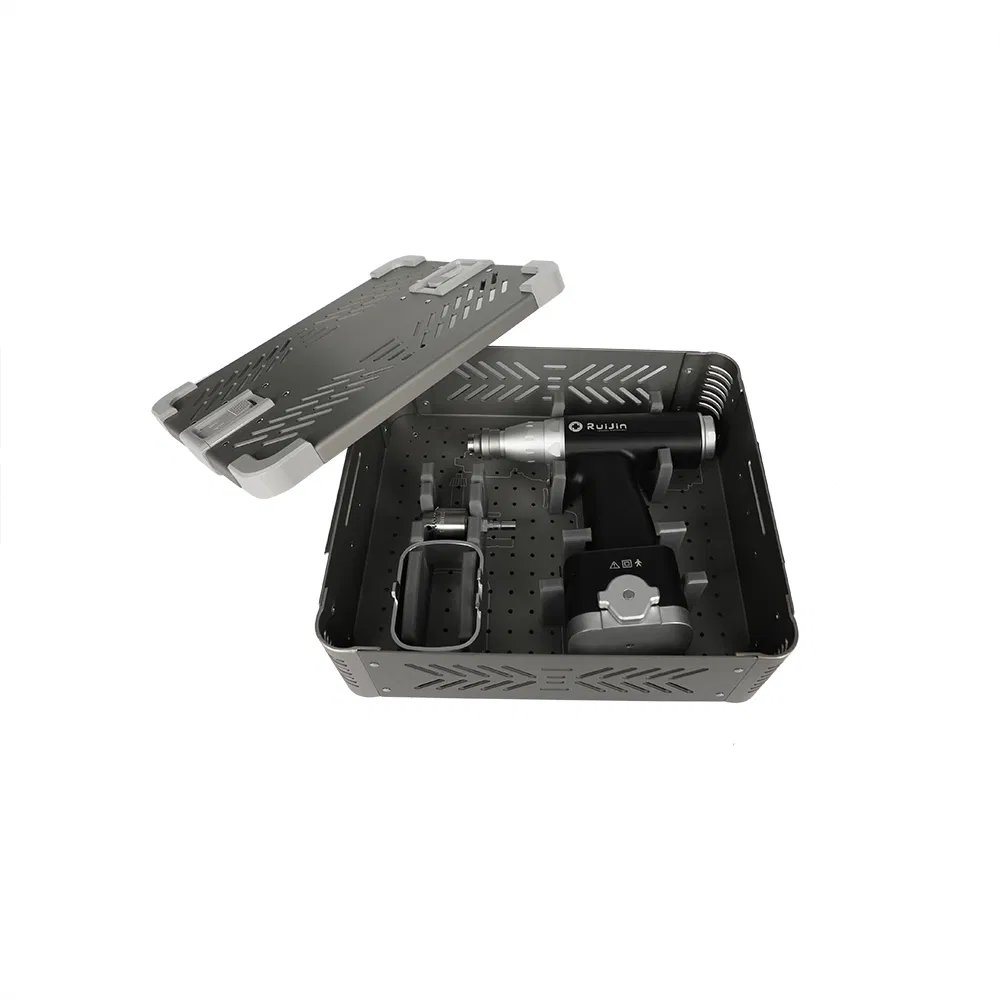

Special sterilization tray (Optional).

Sterilization Tray
📜

4. Certificate

Certificates
✈️

5. Payment & Delivery

  • Price: FOB USD 450-500 / Set
  • MOQ: 1 piece
  • Payment Terms: T/T in advance or Western Union
  • Delivery Time: Within 3 days after payment
  • Packaging: Aluminum alloy box (38x28x13cm) and outer carton (41x32x15cm)

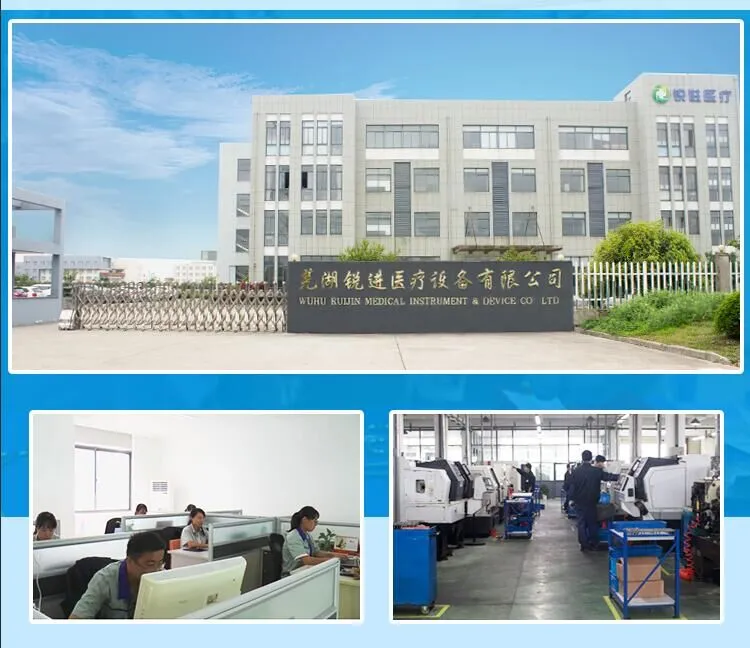

Process
🔄

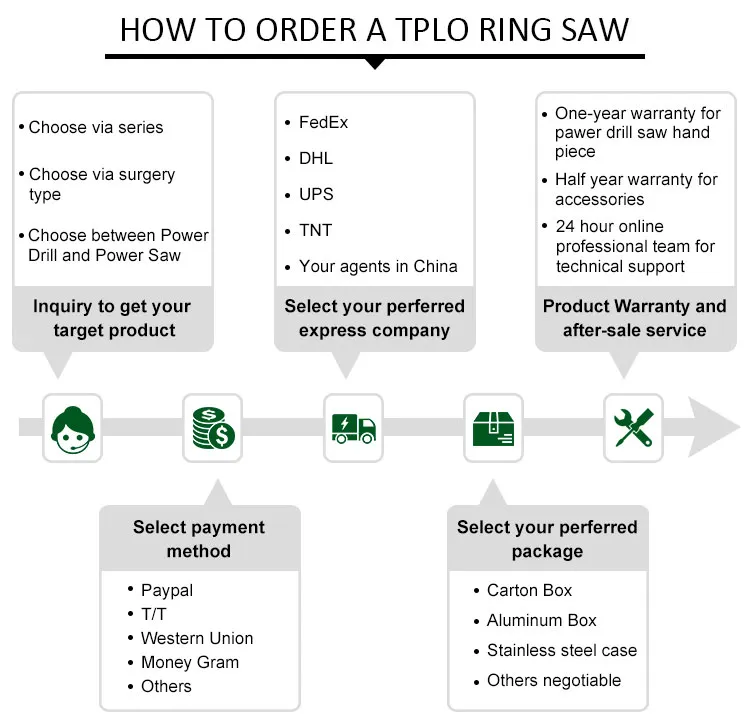

6. Ordering Process

Ordering Process
⚠️

7. Attention & Notes

  • 5. Clean accessories with a purifier and keep dry after operation.
    • 1. The device must not be disassembled by non-professionals.
    2. Compatible with electricity sources 110V/60Hz - 220V/50Hz.
    3. Remove the battery when not in use to prevent discharge and shorten life.
    4. The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.
    6. Sterilization temperature must be below 135°C to avoid motor damage.
    7. Professional support with 24-hour online service and CE marking.
    ❓

    Frequently Asked Questions

    Q1: What surgeries is this surgical drill suitable for? A: It is primarily designed for Total Hip Replacement, but can also be used in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery.
    Q2: Can the entire unit be sterilized? A: Yes, the main unit is autoclavable and can be sterilized at high temperatures and pressures up to 135°C. However, please note that the battery should not be disinfected.
    Q3: What is the typical charging time and battery life? A: The battery takes approximately 3 hours to fully charge. Each set includes two batteries to ensure continuous power during long procedures.
    Q4: Is the speed of the drill adjustable? A: Yes, the device features variable speed control, allowing the surgeon to easily select the appropriate power and speed during operation.
    Q5: What is included in the standard package? A: The standard configuration includes one handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and an aluminum alloy protective box.
    Q6: What certifications does this product have? A: The product is CE certified and complies with ISO13485 quality standards for medical devices.
