Product Description

Basic Specifications

Model NO.

Evans

Usage

Correct Deformities, Fracture Fixation

Package

Standard Carton

Specification

30x23x2

Origin

China

Product Description

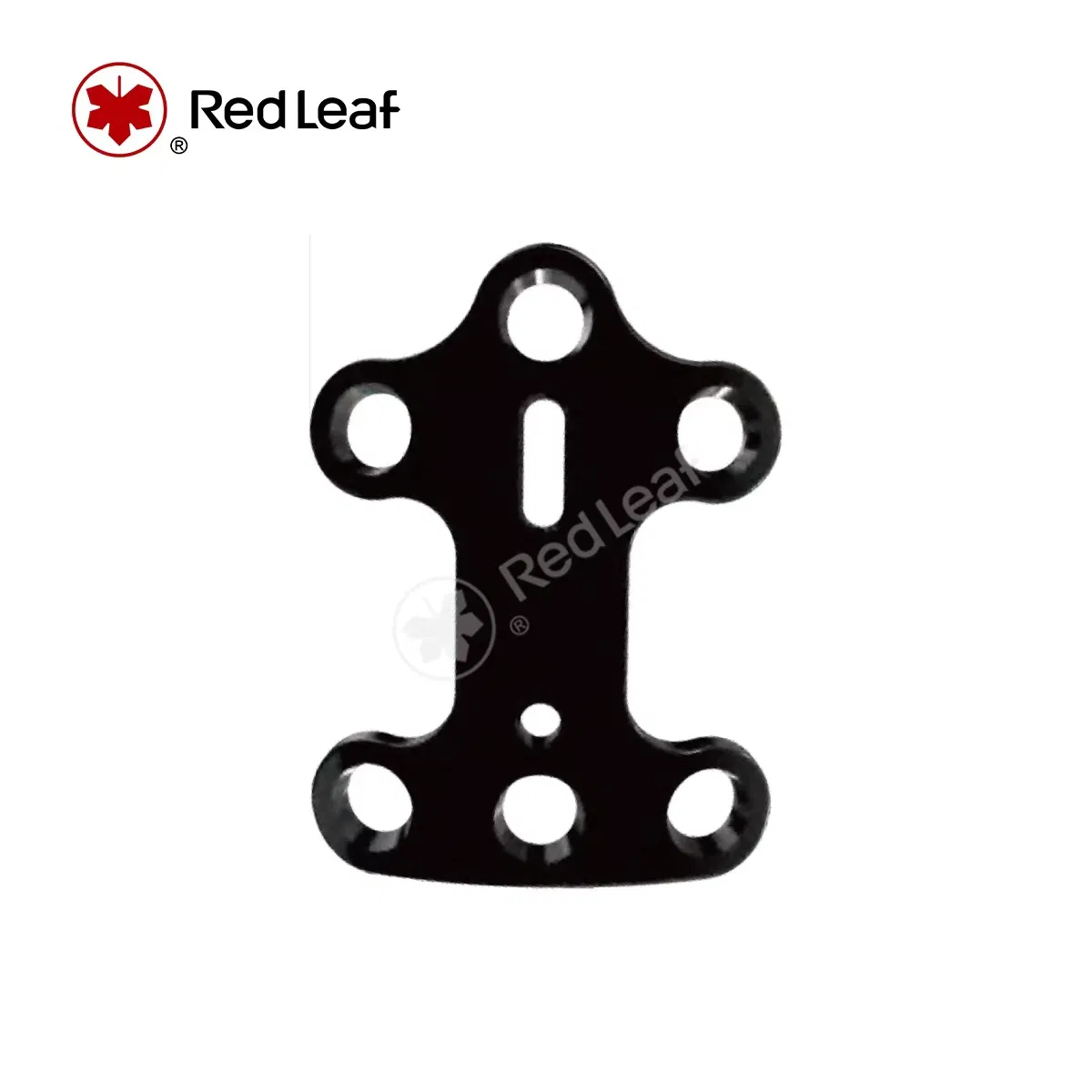

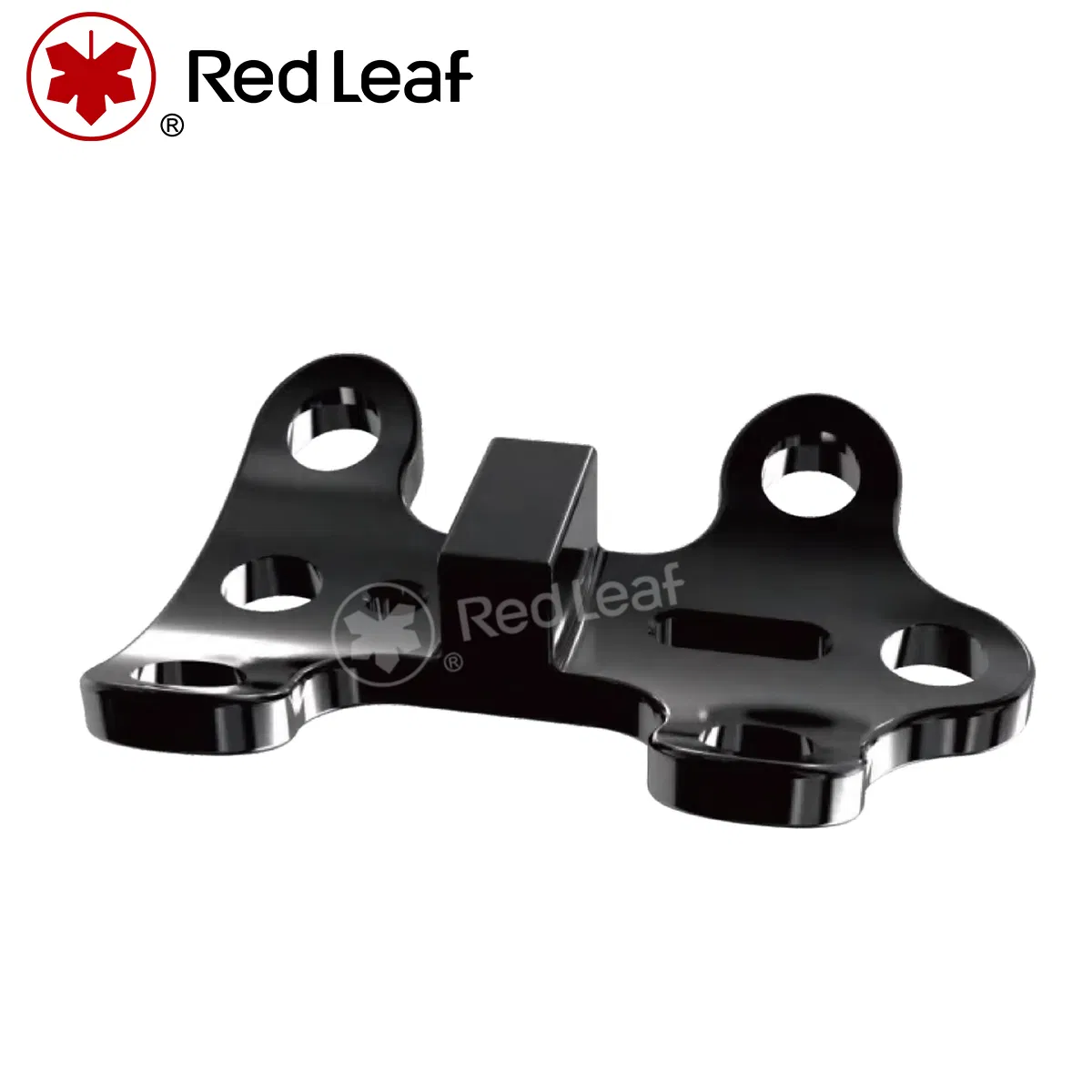

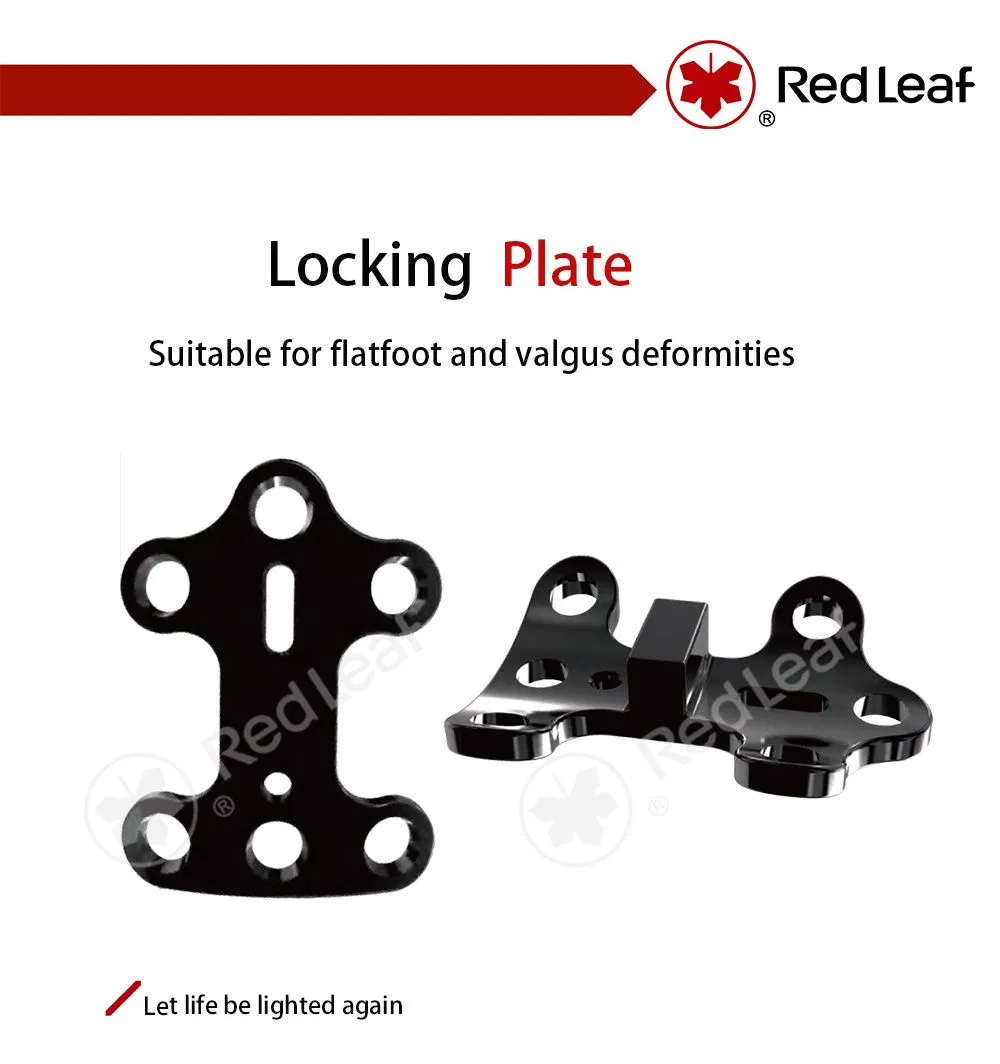

Orthopedic Outer Pillar Brace Osteotomy Locking Plate

Design Concept

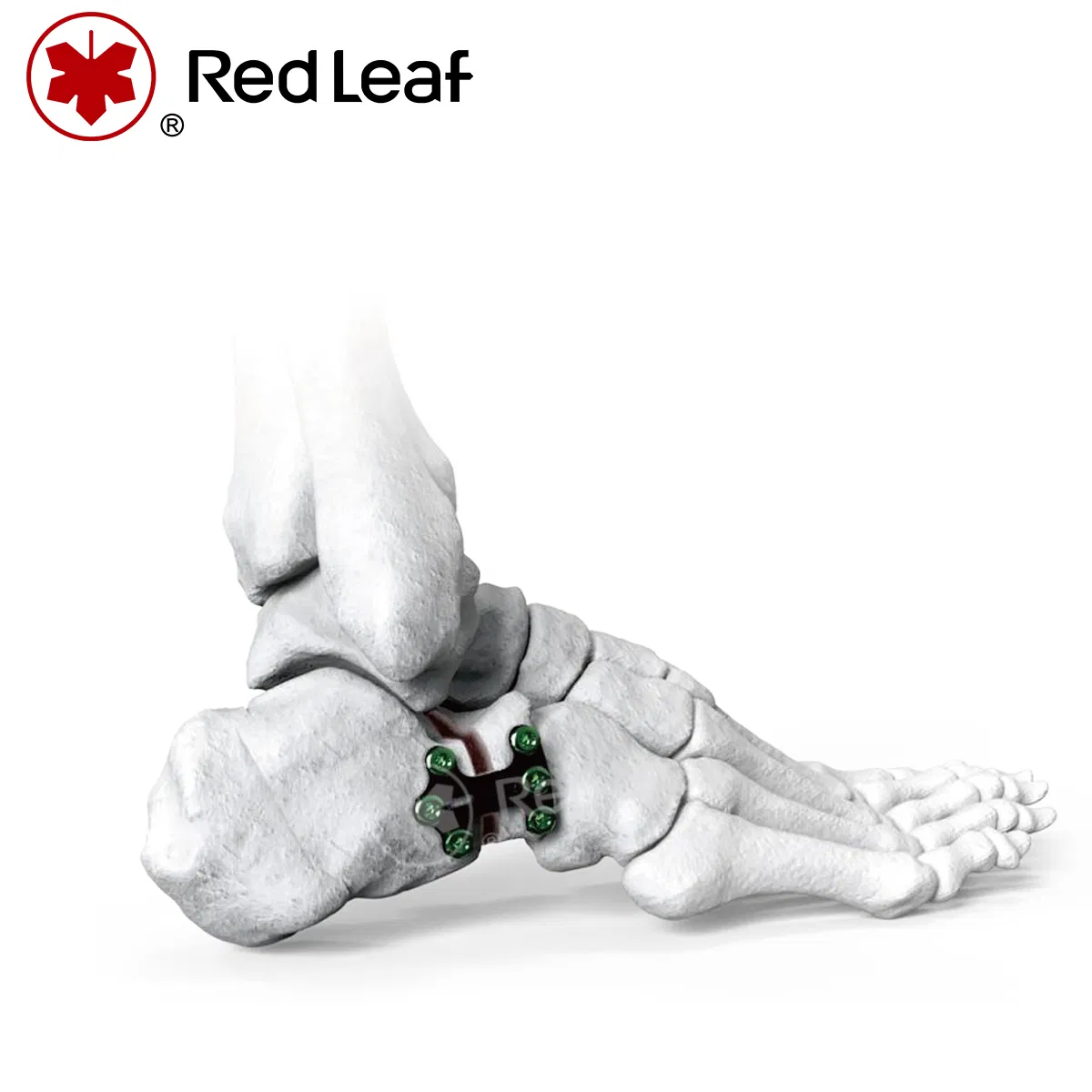

Suitable for flatfoot and valgus deformities
Transverse osteotomy of calcaneal neck
Optimized distance between osteotomy surface and calcaneocuboid joint (10-15mm)

Key Surgical Points

Precise transverse osteotomy of the calcaneal neck.
Controlled cutting speed after inner cortex penetration to protect soft tissue.
Even spreading with parallel openings to promote bone ingrowth and prevent non-union.

Screw & Material Information

Matching screw: 3.5 self-tapping locking screw
Available lengths: 6-40mm (2mm increments)
Kirschner wire: 1.9mm
Material: High-grade TC4 titanium alloy

Product Parameters

Specifications	Length (mm)	Width (mm)	Thickness (mm)	Step Width	Cushion Height
Big	36.0	23.0	2.0	6/8/10	6/8/10
Middle	30.0	23.0	2.0	4/6/8	4/6/8
Small	26.0	23.0	2.0	2/4/6	2/4/6

Product Gallery

Frequently Asked Questions

Q1: What are the primary applications for this locking plate?

A: It is specifically designed for orthopedic surgeries involving flatfoot and valgus correction, as well as fracture fixation and calcaneal neck osteotomy.

Q2: What materials are used in the manufacturing of these plates?

A: The plates and matching screws are made from high-quality TC4 titanium alloy, ensuring excellent biocompatibility and strength.

Q3: Are you a manufacturer or a trading company?

A: We are a professional manufacturer specializing in emergency medical equipment and orthopedic rehabilitation products.

Q4: What quality certifications do your products carry?

A: Our production processes and products are certified by international standards including CE, FDA, ISO9001, ISO13485, and EN1865.

Q5: What is the typical lead time for an order?

A: Normally, the lead time is between 15-25 days after the deposit is received, depending on the order volume and specifications.

Q6: What kind of after-sales support do you provide?

A: We provide a 12-month warranty from the date of receipt. During this period, we offer free spare parts and technical guidance for any necessary replacements.
