Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
1 / 5
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)

Nickel Plated Joint and Pipe Racking System (H-60)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.:
H-60SPCC25NP-N
Product Name:
Metal Joint
Connection Method:
Fastener
Process:
Stamp
Surface Treatment:
Nickel Plated
Wall Thickness:
2.5mm
Diameter:
28.0mm
Application:
Worktable/Trolley/Rack/Production Lines
Color:
Black
Transport Package:
150 PCS / CTN
Specification:
RoHS, SGS, GB
Production Capacity:
100,000 PCS/Day
HS Code:
73079900
D

Product Description

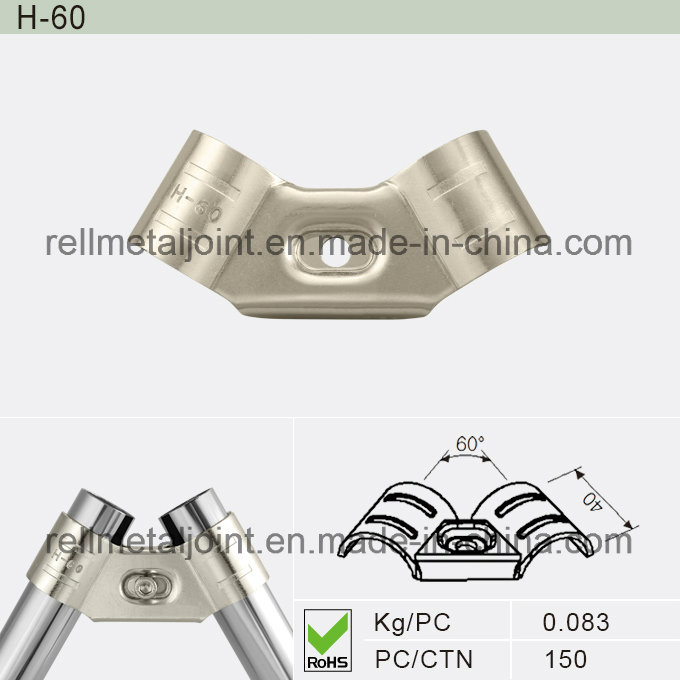

Nickel Plated Joint and Pipe Racking System (H-60)
Specifications & Key Features:
1. Simple and easy to operate.
2. High glossy finish with versatile loading capacity.
3. Fully reusable for sustainable lean production.
  • Reusable
  • Flexibility
  • Simple Operation
  • Extensibility

This metal joint is designed for pipe and joint racking systems in lean production environments. The nickel-plated joint is ideally used with Φ28mm SUS pipes, aluminum alloy pipes, ABS/PE coated pipes, powder-painted pipes, and galvanized pipes.

Description Details Material/Test Parameters Packing Info Value
Product Metal joints Material SPCC (Q/TB201-2011) Net Weight 0.083 Kg
Model H-60SPCC25NP-N Tension Test ≥80Kg (Q/RELL002-2012) Pieces/CTN 150
Spec. H-60 Surface Nickel Plated Package Size 280*225*160 mm
Unit Piece Salt-Spray Test ≥24h (Q/RELL001-2012) Pallet Size 1200*800 mm
Certification RoHS OK Status Standard CTN/Pallet 100

With rich experience in the related industry, we strive to provide the best quality service. We follow the "quality first" principle, ensuring strong development ability, short delivery times, and considerate service for a one-stop procurement experience.

F

Frequently Asked Questions

What type of pipes are compatible with the H-60 metal joint?
The H-60 metal joint is primarily designed for Φ28mm pipes, including SUS pipes, aluminum alloy pipes, ABS/PE coated pipes, and galvanized pipes.
Can these metal joints be reused in different configurations?
Yes, one of the primary advantages of this system is its complete reusability. You can easily disassemble and reconfigure the joints for new worktables, racks, or production lines.
What is the weight-bearing capacity of this joint?
Based on the tension test (Q/RELL002-2012), this metal joint can withstand a tension of ≥80Kg, making it suitable for heavy-duty industrial racks and trolleys.
How does the nickel plating benefit the product?
The nickel plating provides a high-gloss finish and enhances durability. It also allows the joint to pass a Salt-Spray Test of ≥24h, offering improved corrosion resistance.
Is this product compliant with international environmental standards?
Yes, the H-60 metal joint is compliant with RoHS and SGS specifications, ensuring it meets safety and environmental requirements.
What is the standard packaging for bulk orders?
The standard packaging is 150 pieces per carton (CTN), with a carton size of 280*225*160 mm. For larger logistics, we provide 100 cartons per pallet.
