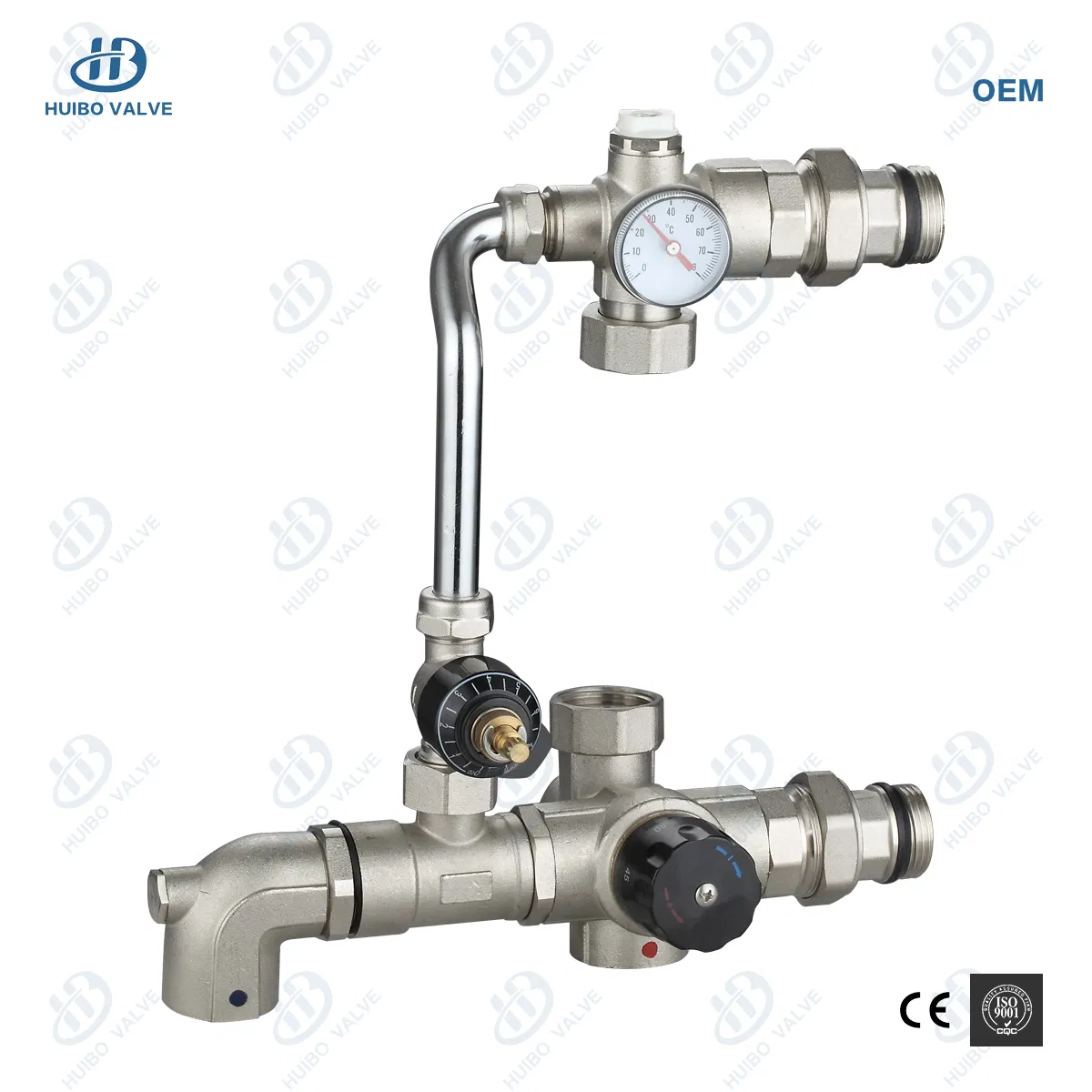

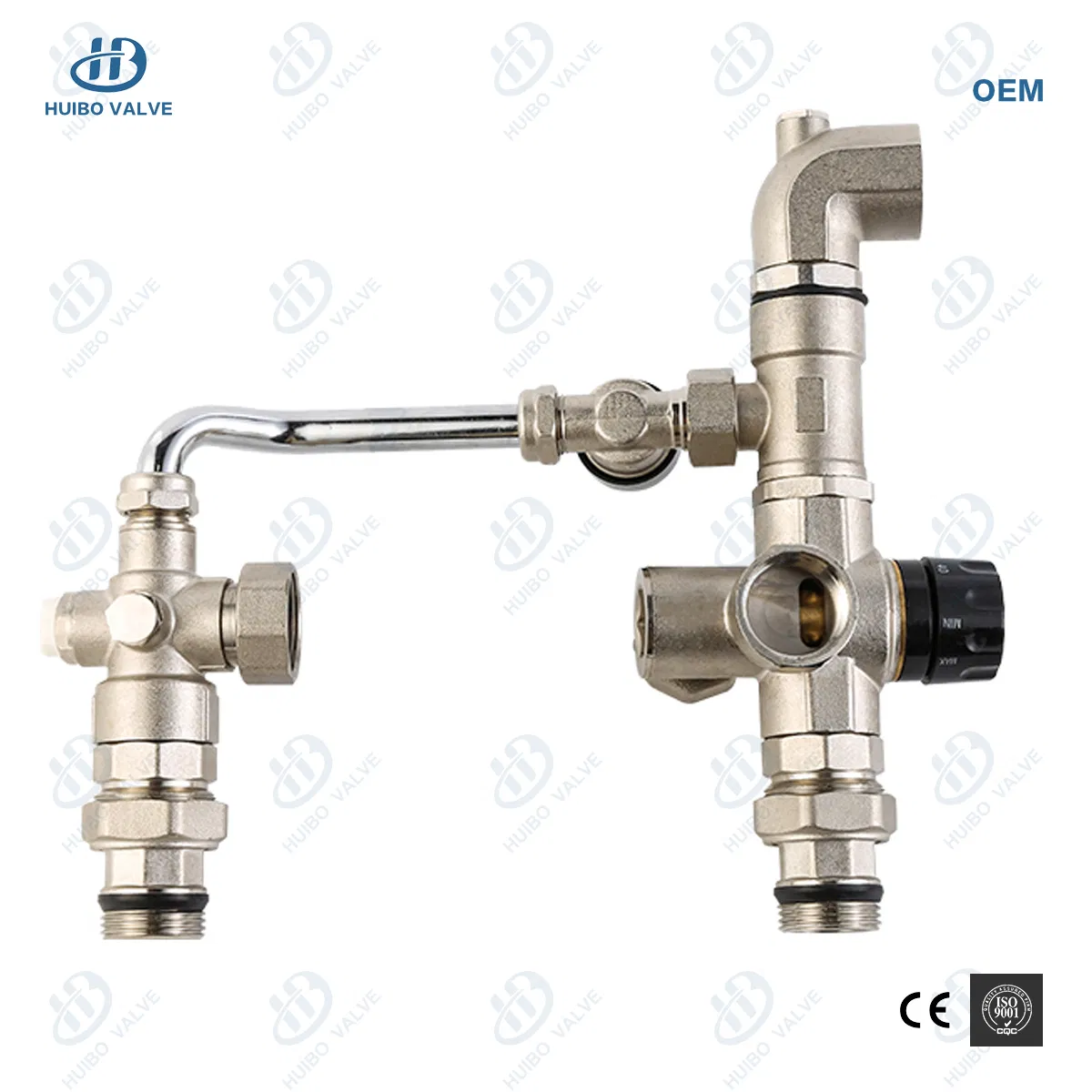

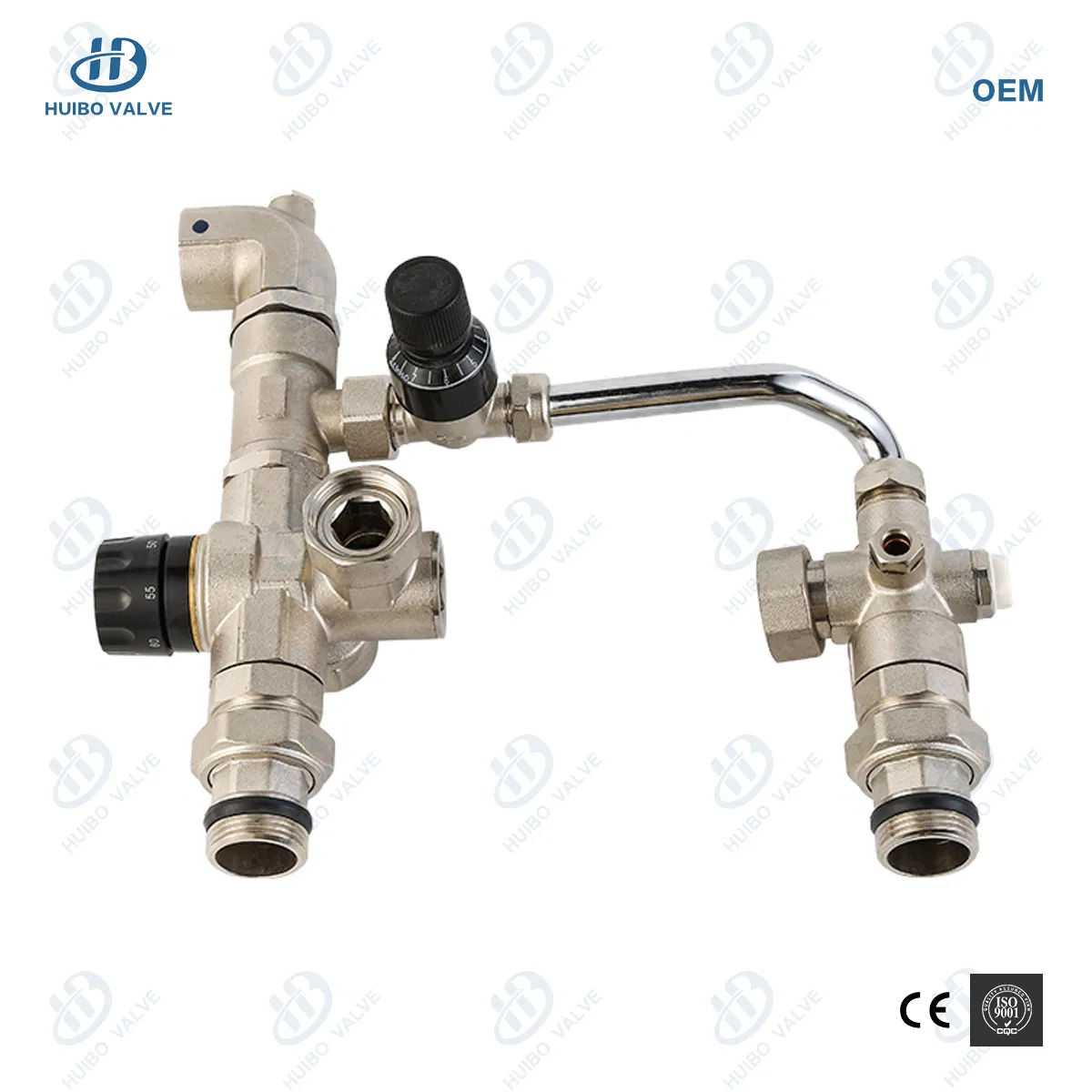

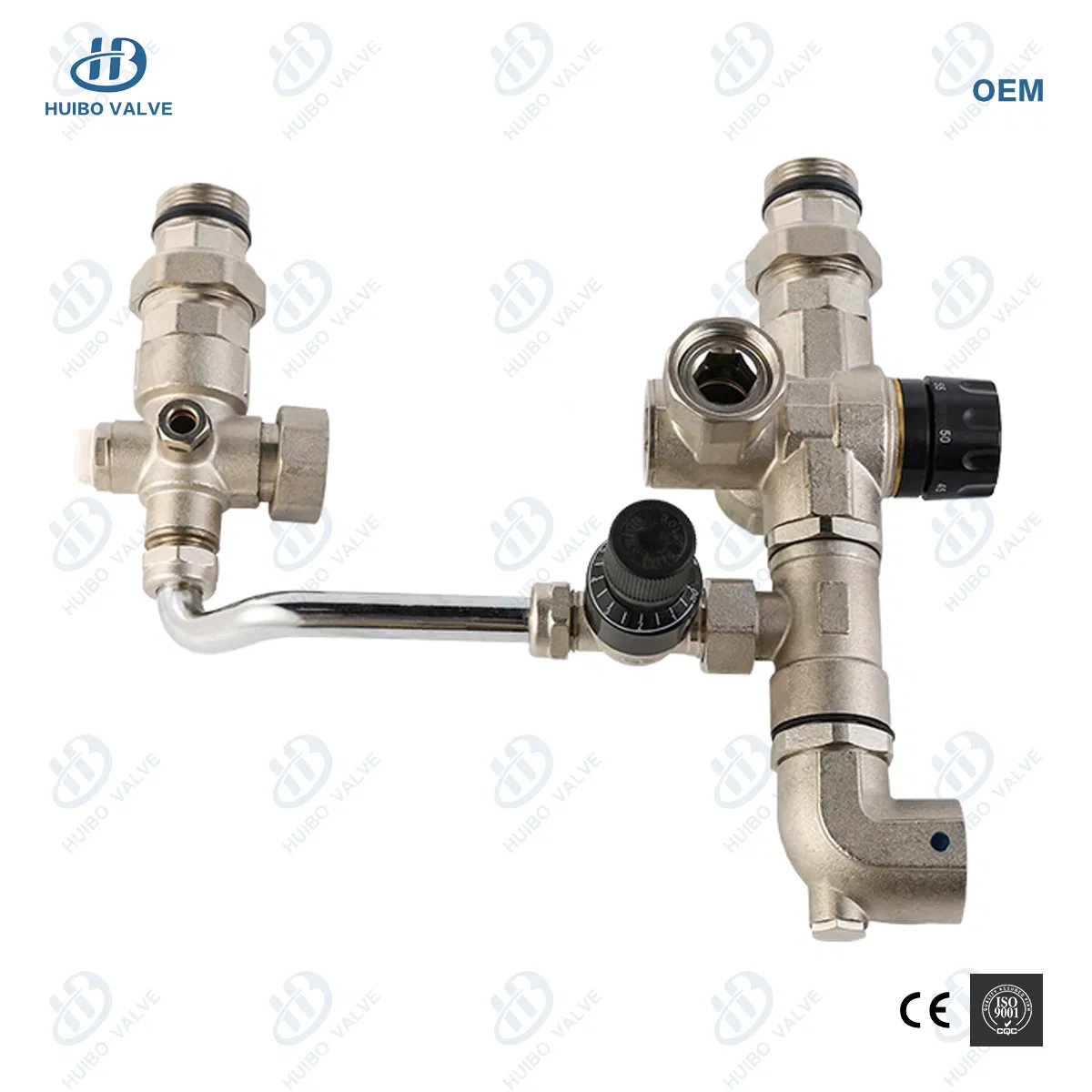

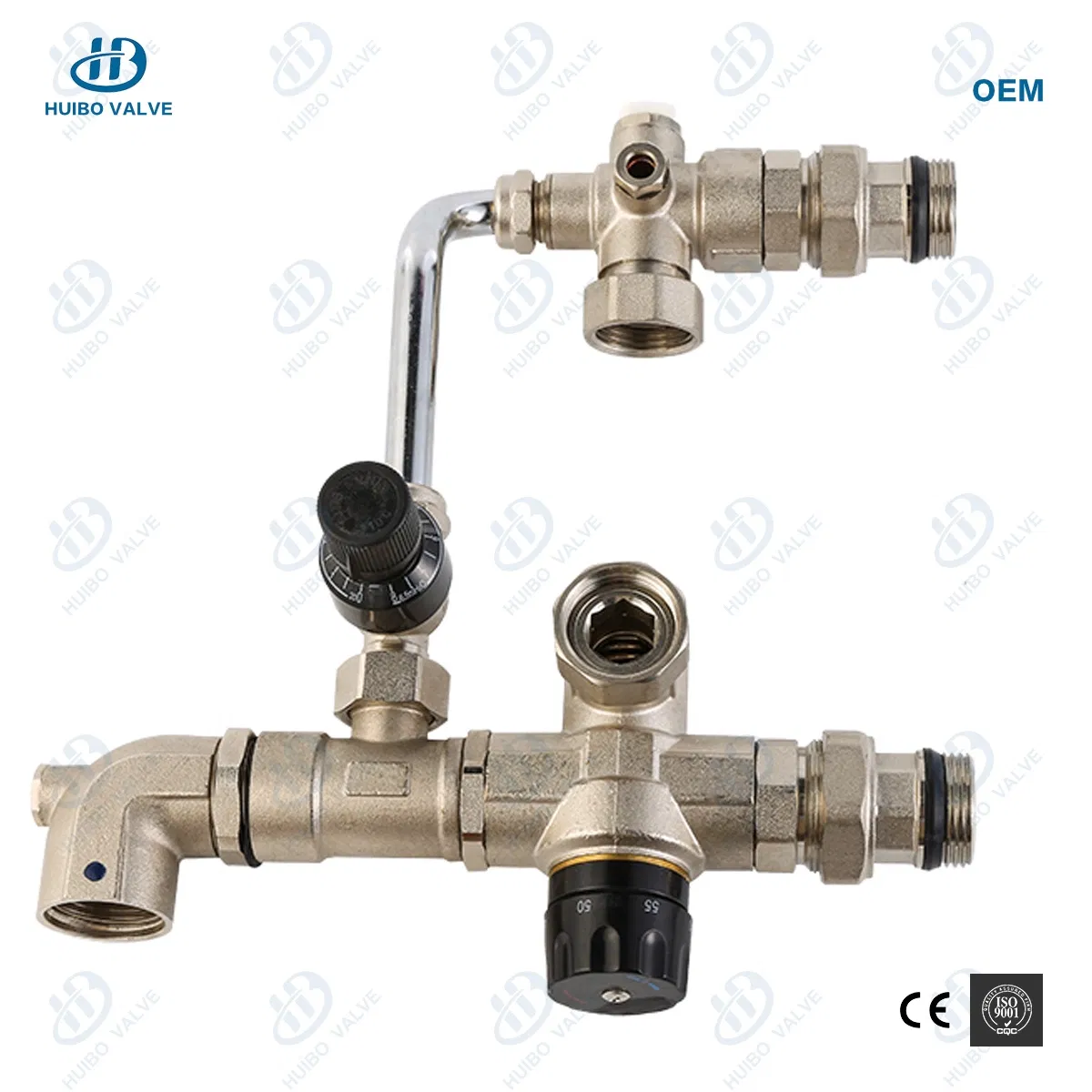

Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
1 / 5
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System
Nickel Plated Floor Heating Radiator Manifold Water Mixing System

Nickel Plated Floor Heating Radiator Manifold Water Mixing System

Customization: Available
Name: Brass Water Mixer Kit
Material: Foged Brass
Send Inquiry

Product Description

i

Basic Information

Model NO.
HB-16402
Surface
Sand Blast & Nickel Plated
Max. Working Pressure
1MPa
Water Inlet Temp.
0-95℃
Output Temp.
35-55℃
Accuracy
±2℃
Head Lift
6m
Max Power
100W
Use Area
200m²
Connection
Threaded
★

Product Description

Automatic Control System of Brass Water Mixer Kit

This system is a high-performance brass mixing water unit designed for household applications, integrating a water pump and pressure gauge. It is ideal for cold/hot water mixing, constant-temperature water supply, and underfloor heating systems. Constructed with high-precision brass casting, it offers superior corrosion resistance and durability.

📷

Detailed Photos

Water Mixing System Detail 1
Water Mixing System Detail 2
Water Mixing System Detail 3
⚙

Technical Parameters

Specification Details
MediumWater
Inlet Temperature0-95ºC
Output Temperature35-55ºC
Temperature Accuracy±2ºC
Center Distance210mm
Valve Guarantee3 Years
MaterialBrass body with surface nickel plated
CertificatesSGS, ISO9001, ISO14001, CE

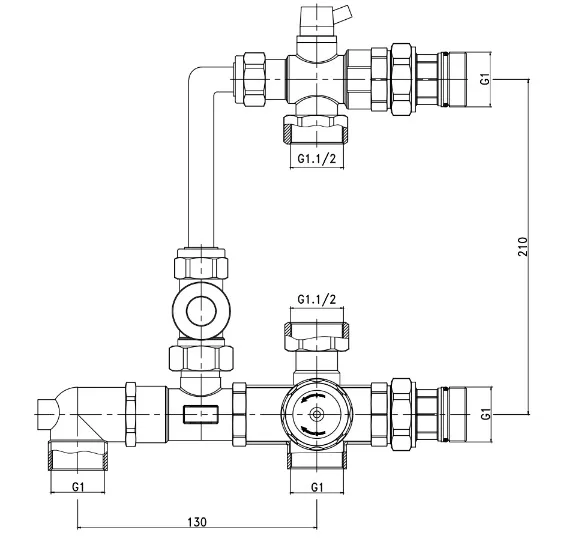

Dimensions Diagram
⚒

Production Process

Production Process
🔥

Product Series & Certifications

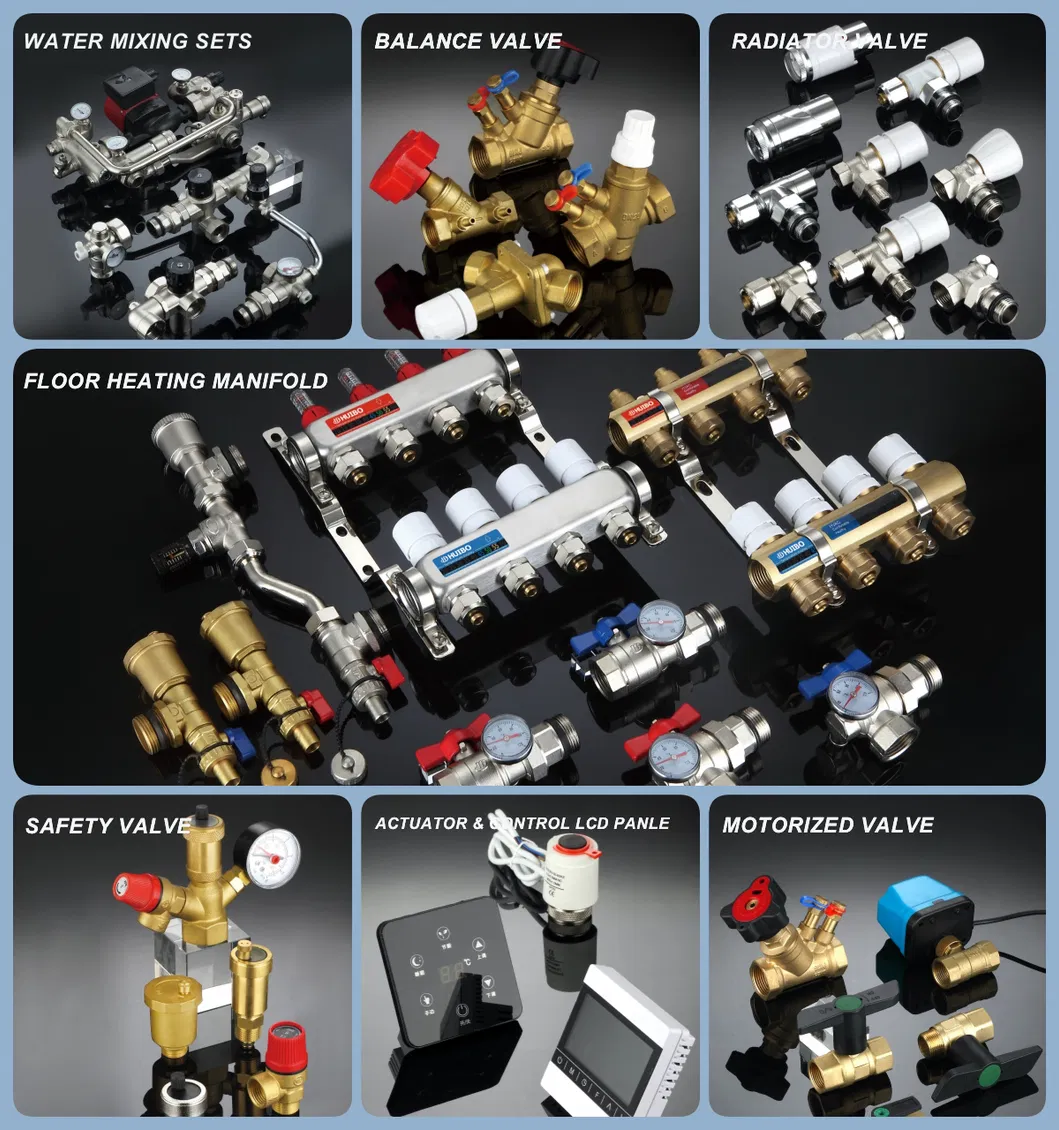

Product Series

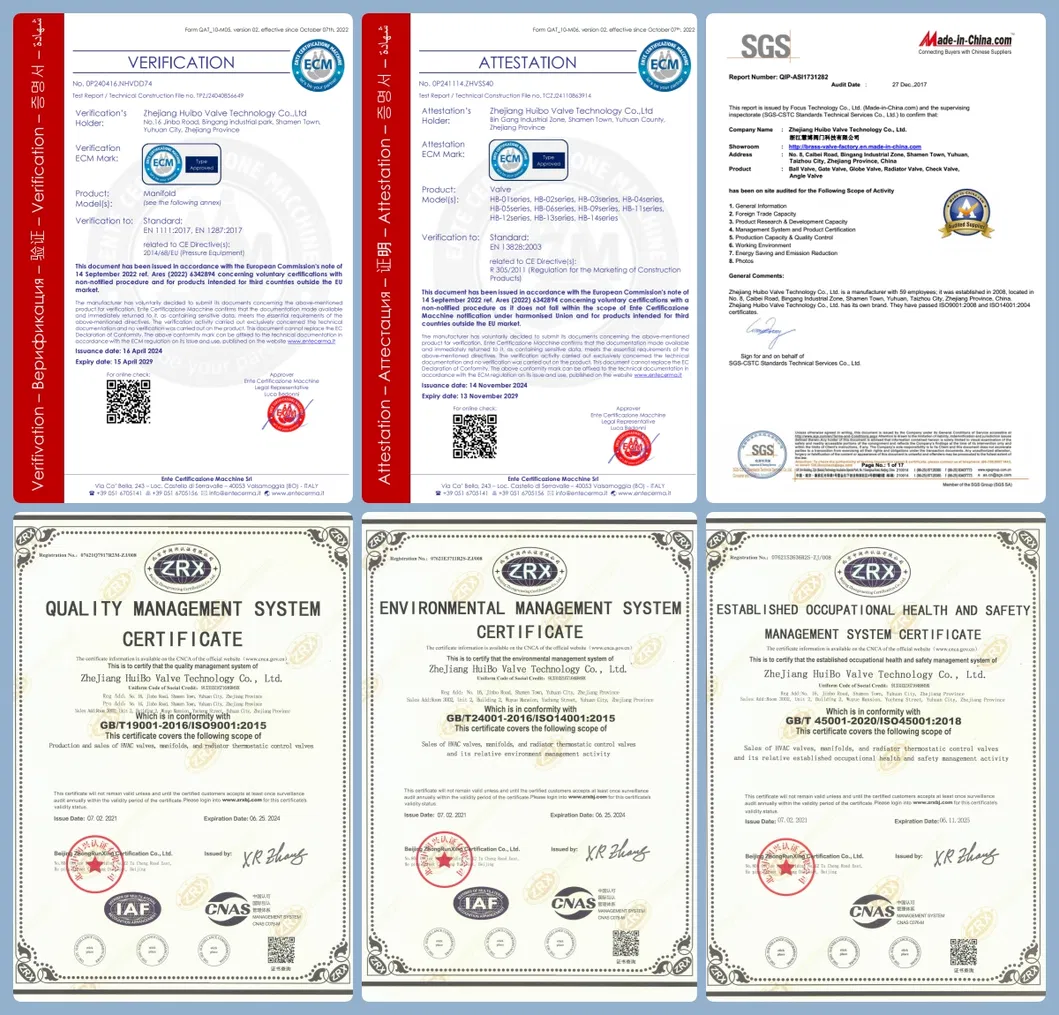

Certifications

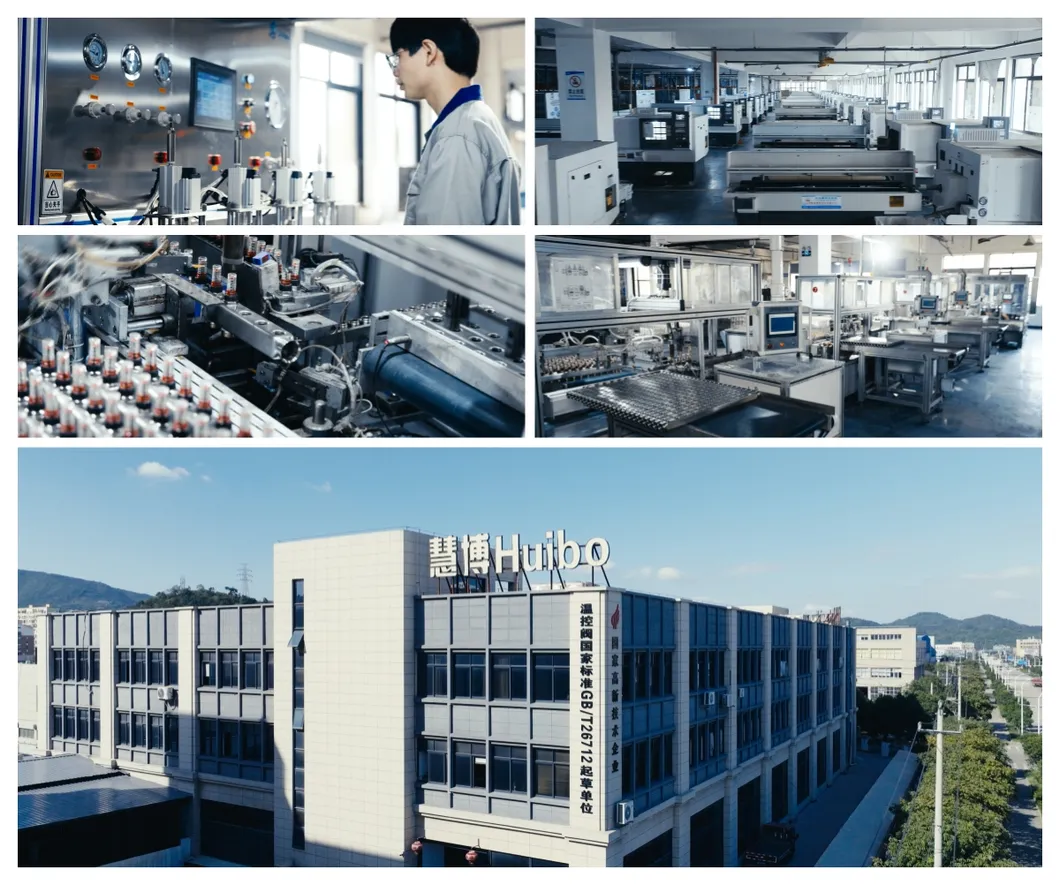

Factory Overview
?

Frequently Asked Questions

Can I have a sample before placing the order?
Yes, we provide samples for testing and quality verification before official purchasing.
What is your MOQ (Minimum Order Quantity)?
The MOQ is 100pcs for manifolds and 1000-3000pcs for other ordinary products. If a new mold is required, the MOQ is 5000pcs.
What is the warranty period for the valves?
We provide a 3-year guarantee on our valve products to ensure long-term reliability.
What is the maximum working pressure and temperature range?
The system supports a maximum working pressure of 1MPa. The inlet temperature range is 0-95℃, and the output mixing temperature is 35-55℃.
How do you ensure temperature control accuracy?
The automatic control system maintains a temperature control accuracy of ±2℃ for consistent comfort.
How do I proceed with an order?
First, let us know your requirements. We will then provide a quotation, confirm samples, finalize order details, and arrange production after receiving the deposit.
