Product Introduction

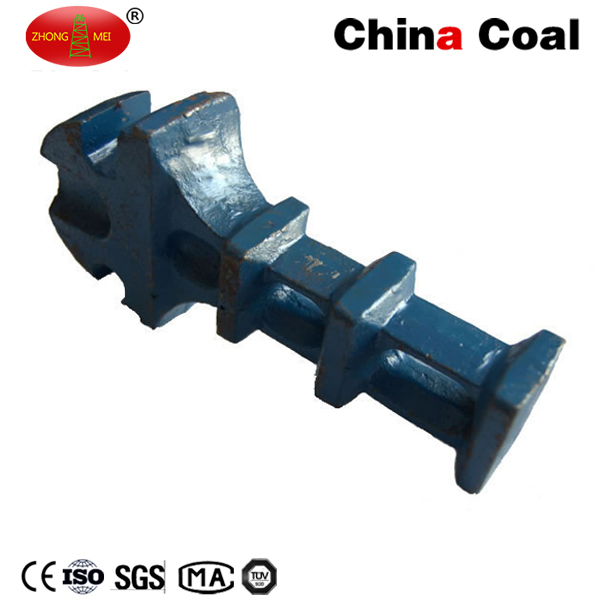

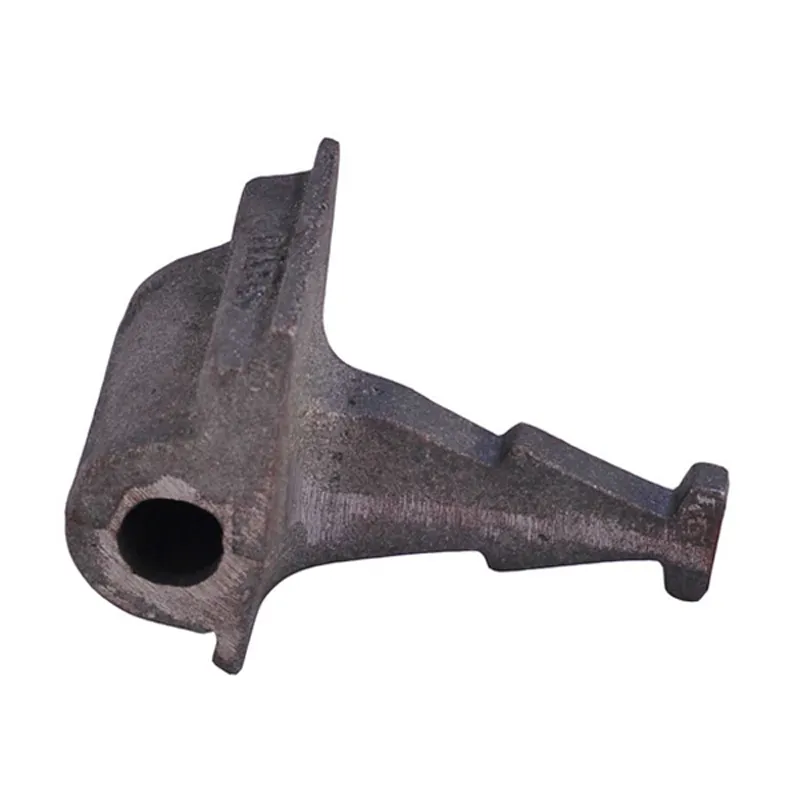

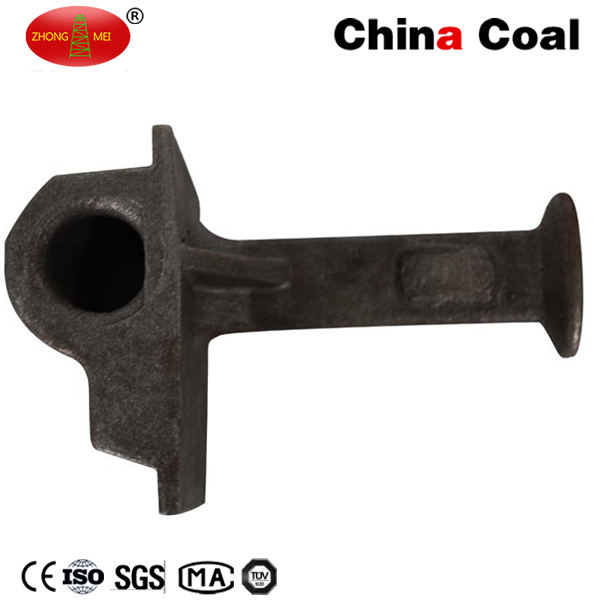

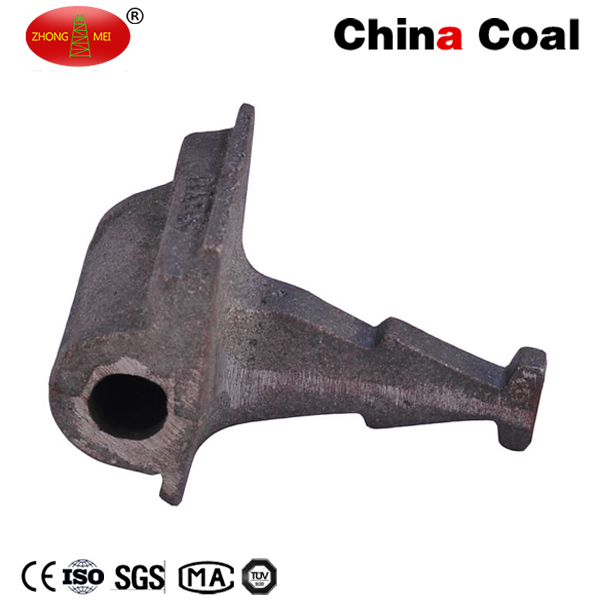

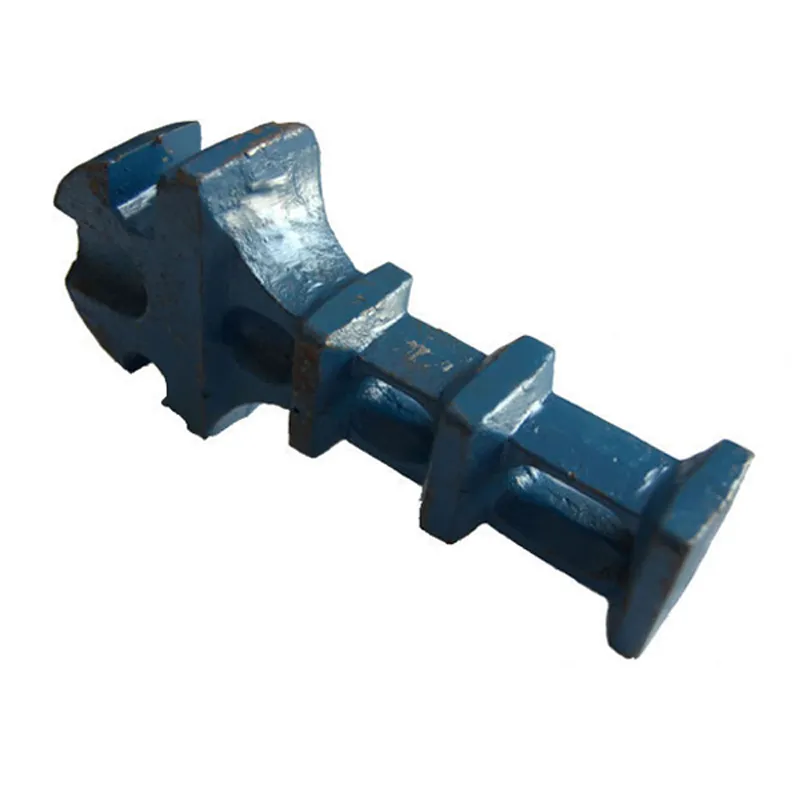

Plain Surface Cast Iron 5.6 Grade Rail Shoulders are cast in concrete ties for the fixation of Elastic Rail Clips. These Iron Shoulders are manufactured from pearlitic malleable iron (M.C.I. Inserts) and spheroid graphite iron (S.G.C.I. Inserts).

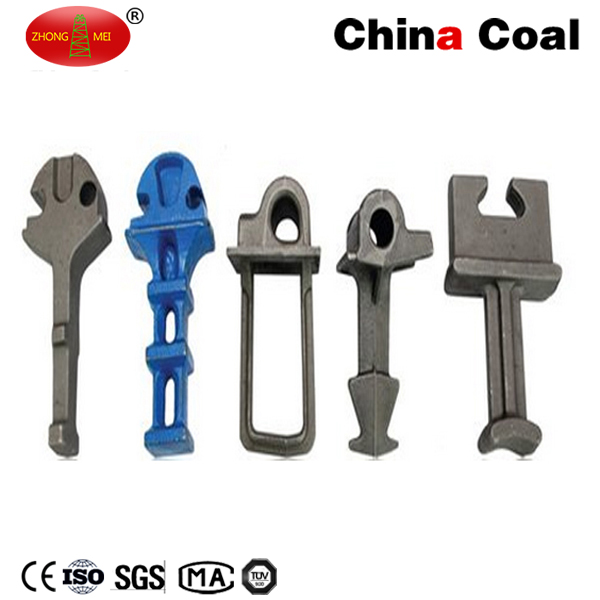

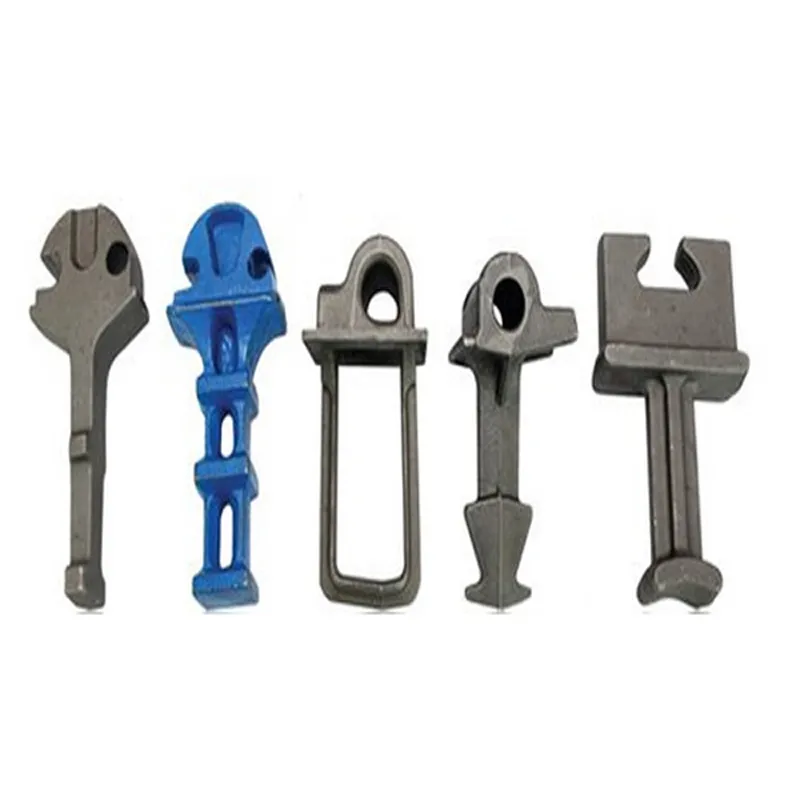

We offer two primary types: Single Stem Iron Shoulders, mostly used in pre-stressed concrete ties, and Twin Stem Iron Shoulders, commonly used in Bi-Block or Twin Block concrete ties. The shoulder accessories are designed for specific rail sections to ensure correct elastic clip toe loading and necessary weld integrity.
💡
Frequently Asked Questions
What is the main function of a rail shoulder?
Rail shoulders are cast directly into concrete ties to provide a secure anchor point for Elastic Rail Clips, ensuring the rail stays firmly in place.
Which materials are used for these shoulders?
They are typically manufactured from pearlitic malleable iron (M.C.I.) or spheroid graphite iron (S.G.C.I.), with grades like QT500-7, QT450-10, and QT400-15.
What is the difference between Single Stem and Twin Stem shoulders?
Single Stem shoulders are primarily designed for pre-stressed concrete ties, while Twin Stem shoulders are used for Bi-Block or Twin Block concrete ties.
Which rail types are compatible with these shoulders?
They are designed for a variety of rail sections, including UIC54, UIC60, 115RE, 50kg, 60kg, BS80lbs, and BS100lbs rails.
What surface treatment is applied to the iron shoulders?
The standard finish is plain and oiled to prevent rust, though black-treated options are also available based on requirements.
Can you manufacture shoulders according to custom designs?
Yes, shoulders can be produced based on specific customer drawings and unique technical requirements for different rail infrastructure projects.
