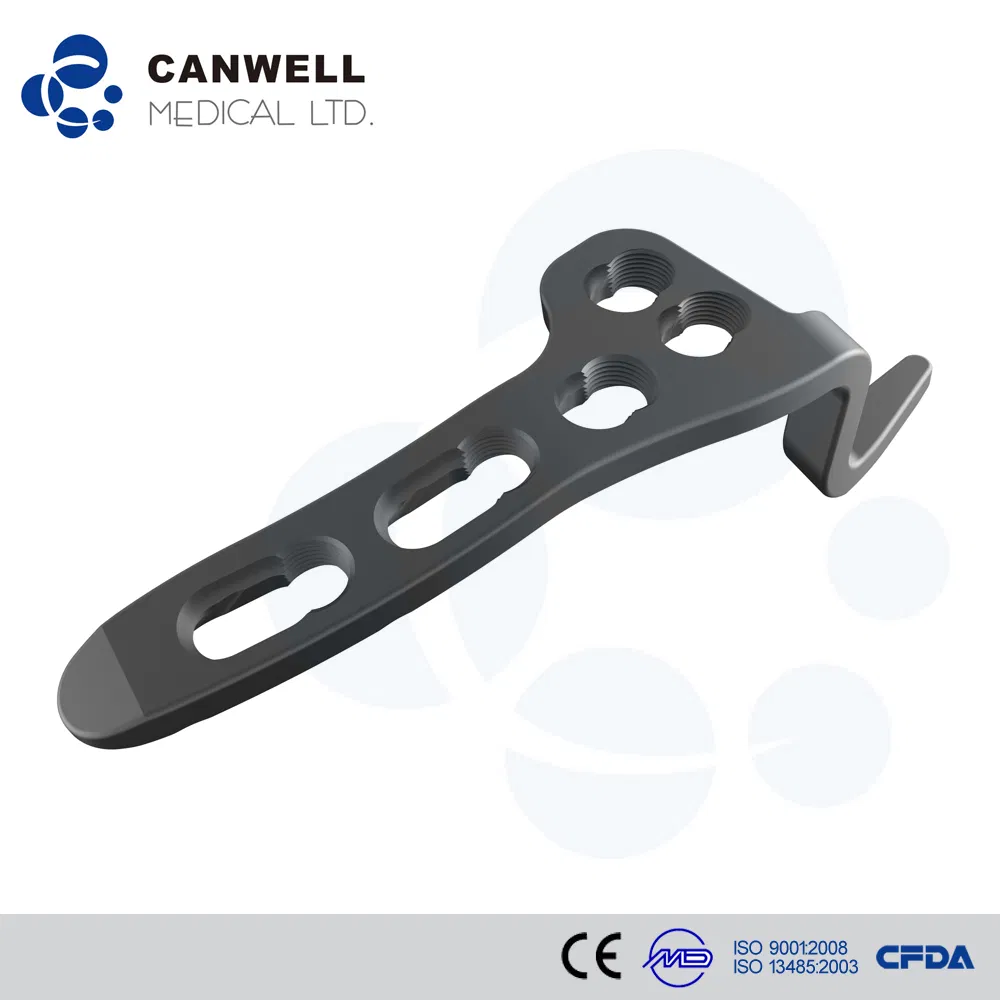

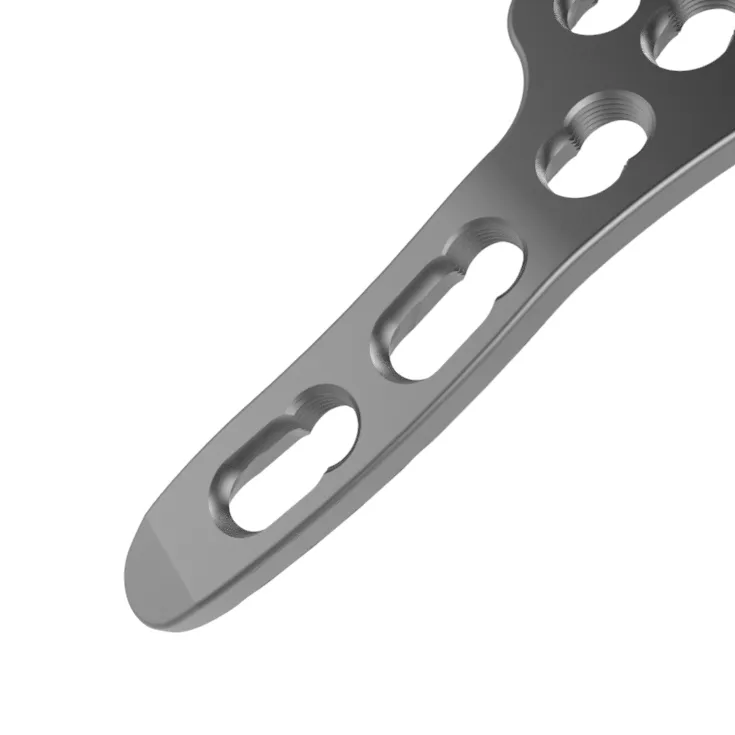

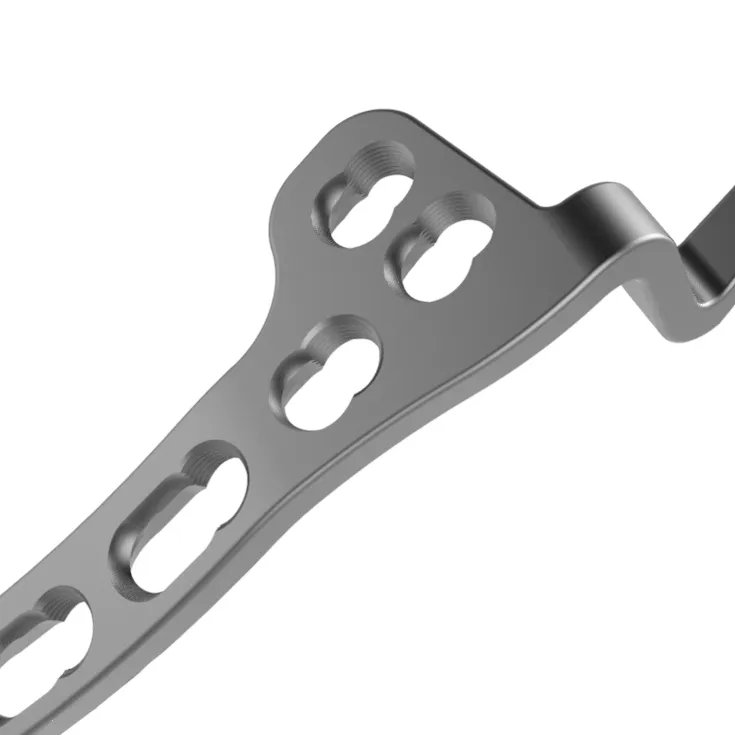

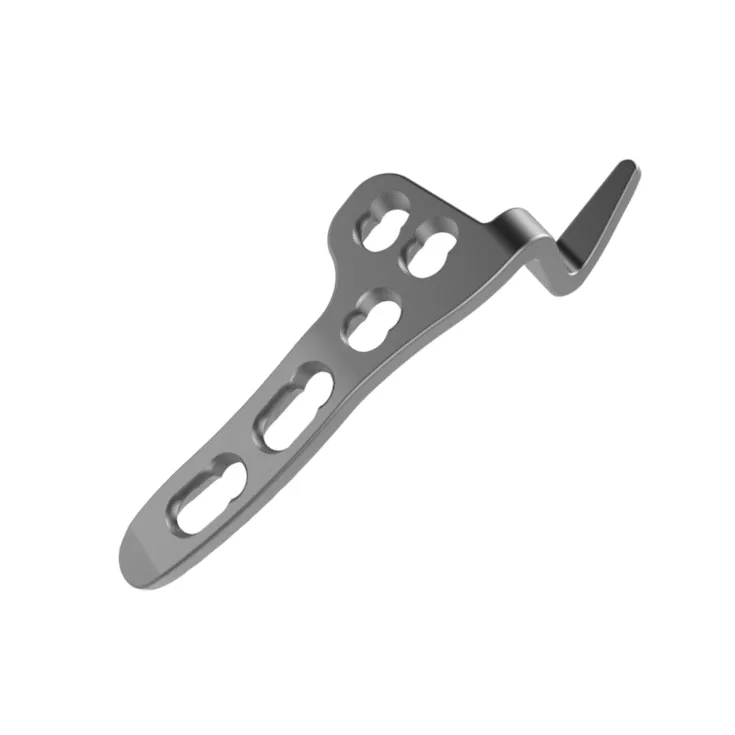

Small Locking Fragment Plating System Clavicle Hook Plate

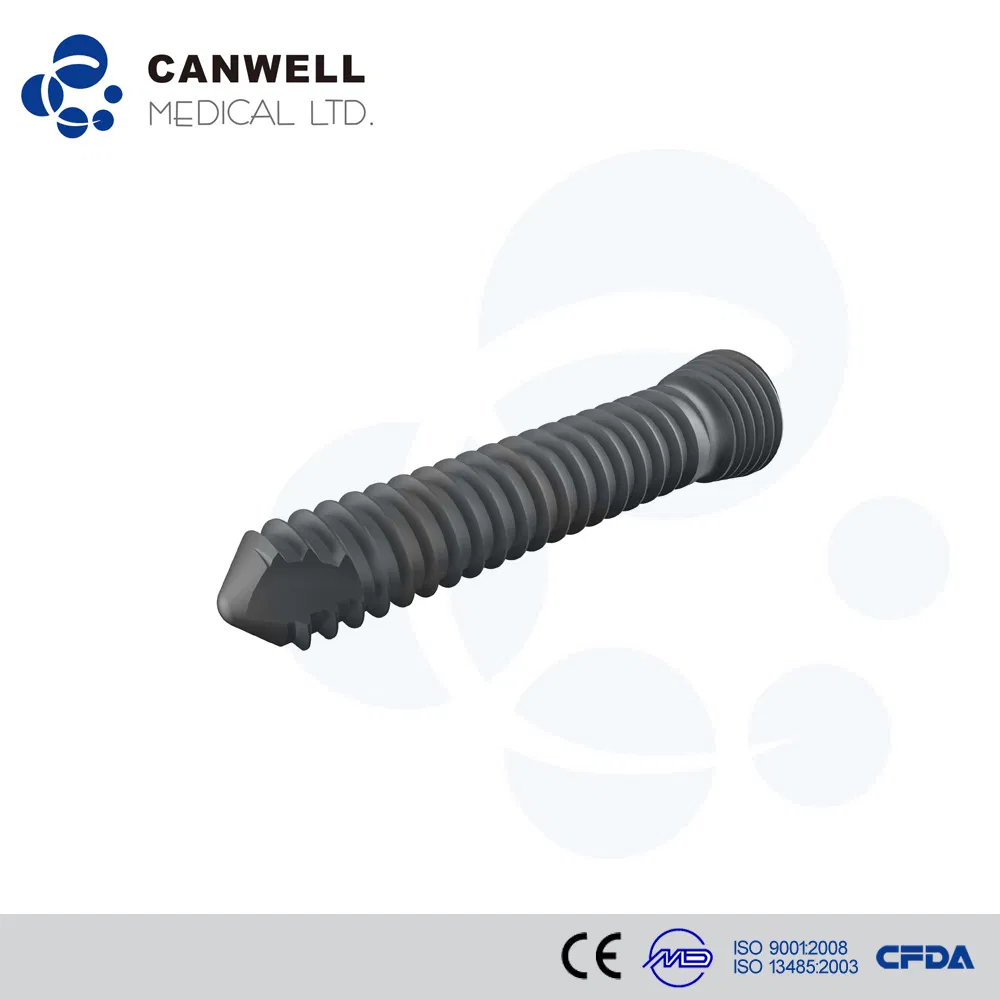

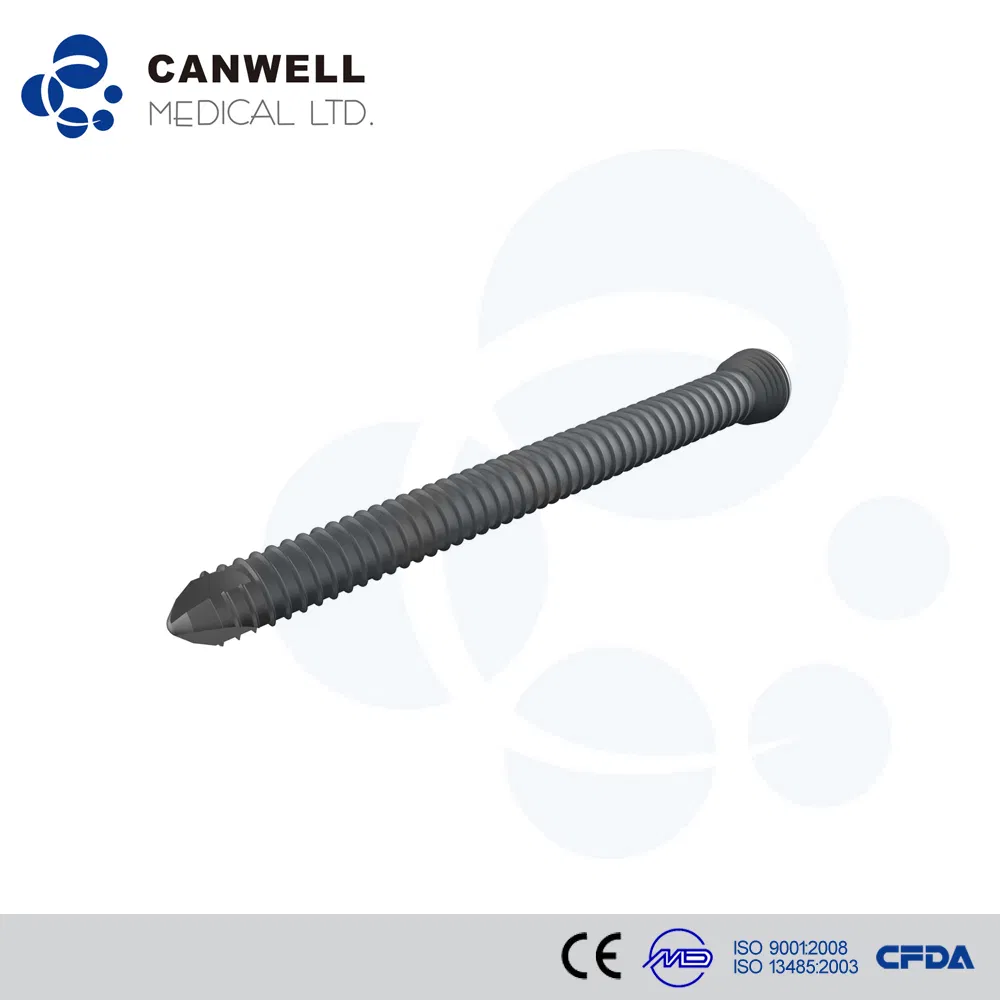

Matching Screw: 3.5mm Cortical Screw; 3.5mm Locking Screw
| Product Information Details | |
|---|---|
| Product Name | Clavicle Hook Plate |
| Material | Titanium |
| Product Color | Gray |
| Surface Finished | Anodizing |
| Quality Standard | ISO, CE |
| Specification | Hole 4 - 7 |
| Length | 41mm - 74mm |
| Hole | Direction | P.N | Length | Height | Material |
|---|---|---|---|---|---|
| 4 Holes | Left | 122236104 | 41mm | 18 | Titanium |
| 5 Holes | 122236105 | 53mm | 18 | Titanium | |
| 6 Holes | 122236106 | 64mm | 18 | Titanium | |
| 7 Holes | 122236107 | 74mm | 18 | Titanium | |
| 4 Holes | Right | 122236304 | 41mm | 18 | Titanium |
| 5 Holes | 122236305 | 53mm | 18 | Titanium | |
| 6 Holes | 122236306 | 64mm | 18 | Titanium | |
| 7 Holes | 122236307 | 74mm | 18 | Titanium |

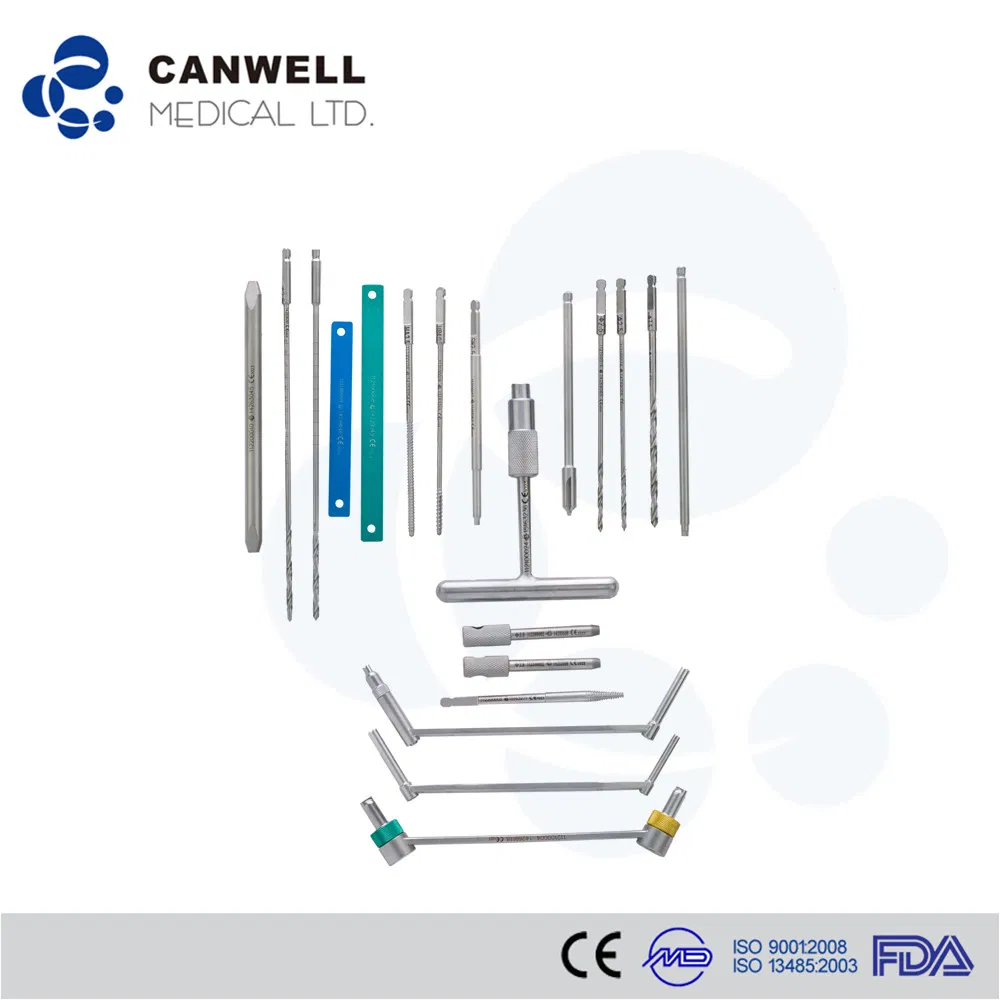

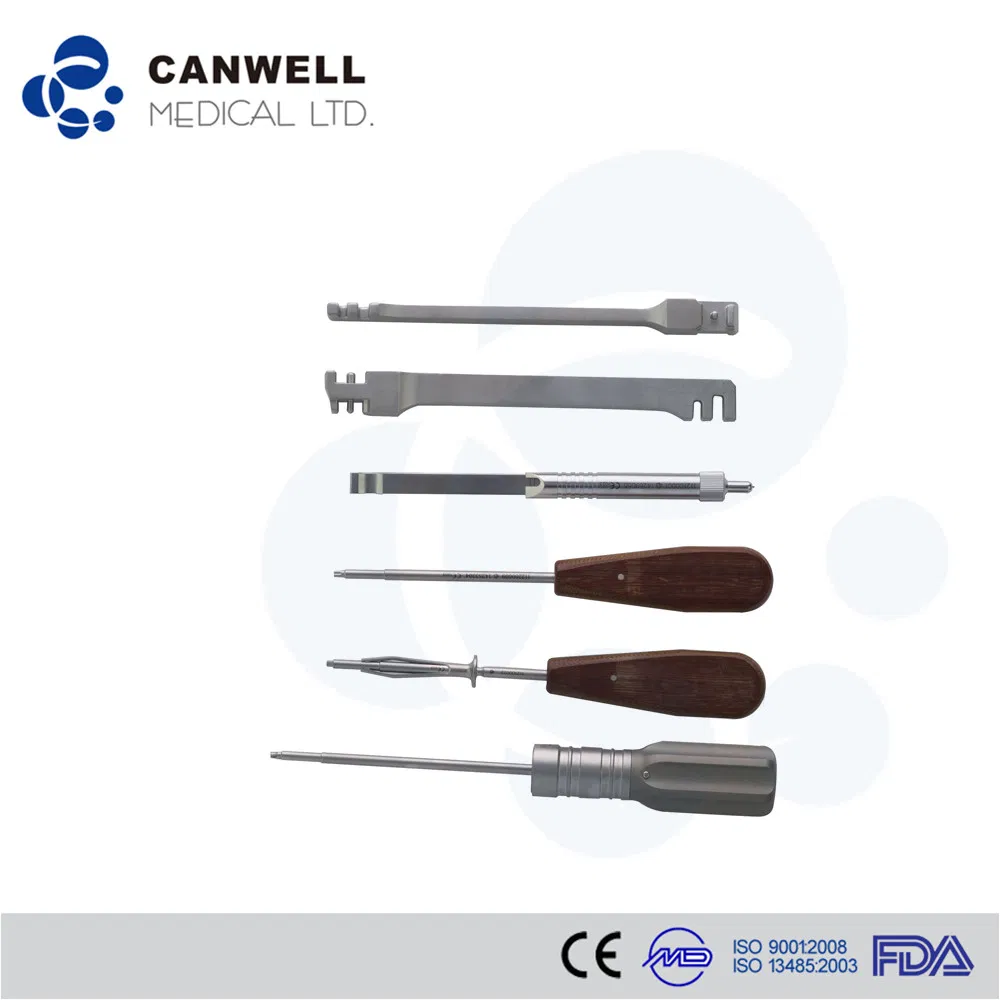

| P.N | Description | Qty. |
|---|---|---|
| 112100001 | Depth Gauge for φ2.5mm-φ4.0mm Length 60mm | 1 |
| 112100004 | LC-DCP Drill Guide, Ø2.5/Ø3.5mm | 1 |
| 112100015 | Drill Bit, Ø3.5mm Length 112mm | 1 |
| 112100017 | Hexagonal Screwdriver Shaft | 1 |
| 112200001 | Torque Limiter 1.5N Length 220mm | 1 |

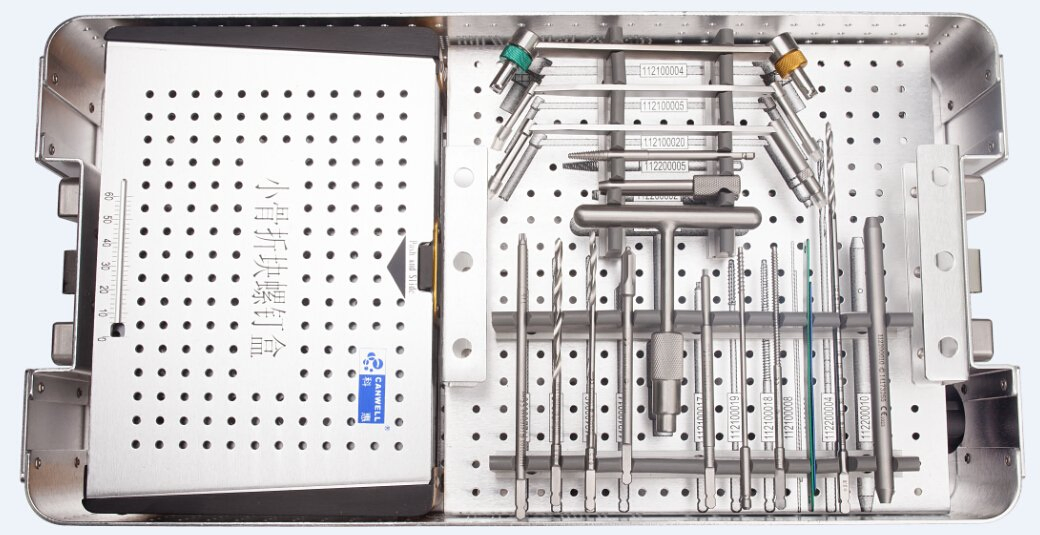

| 112128000 | Instrument Tray | 1 |
